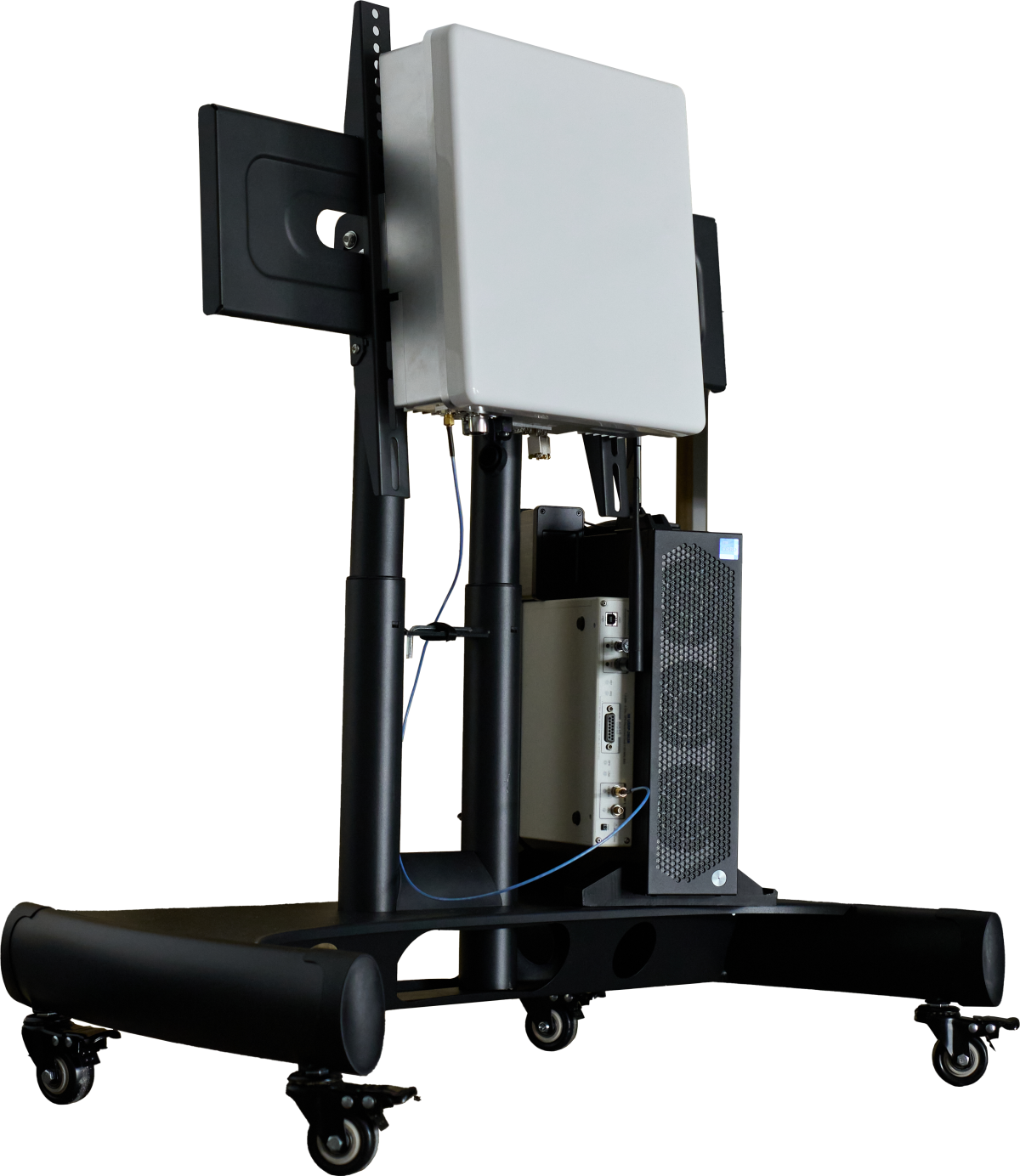

GSR working with UME-06TR144
GSR working with UME-06TR144

UME-06TR144

5~6GHz Active Phased Array Antenna - Gaustech

The UME-06TR144 is an active phased antenna that operates in the 5GHz-6GHz band, providing the best in class performance whose EIRP is up to 74dBm@P1dB.

Overview

Overview

The UME-06TR144 is an active phased antenna that operates in the 5GHz-6GHz band. The active antenna adopts multi-channel RF and antenna array to realize spatial beam fouling and complete RF signal transmitting and receiving, with high reception sensitivity and dynamic signal coverage performance.

Feature

•    5.0GHz-6.0GHz range
•    >400MHz bandwidth
•    144 antenna units
•    +/-60° dynamic beam sweep range
•    EIRP>74dBm
•    Unit noise figure <5dB
•    Switching speed <0.5us



Specifications

Specifications

RF Frequency Range

5~6GHz

Duplex Mode

TDD

Tx EIRP

74dBm@P1dB

Instantaneous Bandwidth

400MHz

Noise Figure

5dB typical @Max Gain

Emission Rejection

60dB

EVM

≤2.5% @OFDM QAM64

Beam Steering Range

+/-60° AZ, +/-60° EL

Flatness

±1dB over 200MHz BW

Switching Speed

<0.5us

Beam State

64×64

Power Supply

24VDC 20A

Dimension (W x D x H)

320 x 320 x 120 mm

Weight

10 kg

RF Connector

SMA (Female)

Control Interface

RJ45(RS232),HDMI,SFP

Operating Temperature

– 25° ~ 50° C

Overview

The UME-06TR144 is an active phased antenna that operates in the 5GHz-6GHz band. The active antenna adopts multi-channel RF and antenna array to realize spatial beam fouling and complete RF signal transmitting and receiving, with high reception sensitivity and dynamic signal coverage performance.

Feature

•    5.0GHz-6.0GHz range
•    >400MHz bandwidth
•    144 antenna units
•    +/-60° dynamic beam sweep range
•    EIRP>74dBm
•    Unit noise figure <5dB
•    Switching speed <0.5us



Specifications

RF Frequency Range

5~6GHz

Duplex Mode

TDD

Tx EIRP

74dBm@P1dB

Instantaneous Bandwidth

400MHz

Noise Figure

5dB typical @Max Gain

Emission Rejection

60dB

EVM

≤2.5% @OFDM QAM64

Beam Steering Range

+/-60° AZ, +/-60° EL

Flatness

±1dB over 200MHz BW

Switching Speed

<0.5us

Beam State

64×64

Power Supply

24VDC 20A

Dimension (W x D x H)

320 x 320 x 120 mm

Weight

10 kg

RF Connector

SMA (Female)

Control Interface

RJ45(RS232),HDMI,SFP

Operating Temperature

– 25° ~ 50° C
