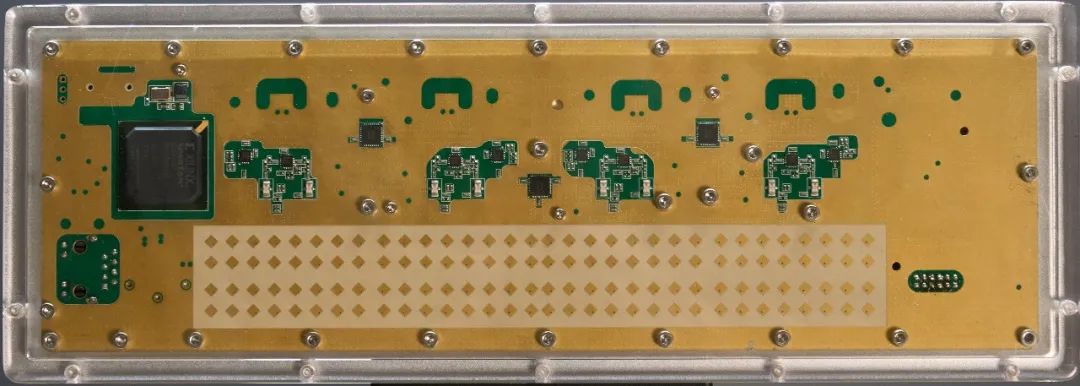

UME-28TR64DP128 is a 4-channel 128-element mmWave Active Phased Array Antenna, with PA, LNA and phase-shifter for each element.

Overview

Overview

The UME-28TR64DP128 has 4 antenna sub arrays, each containing 32 antenna units arranged in a 4×8 manner. Each subarray has 16 TR channels (including phase shifter, LAN, PA, and TR switching), and each TR channel is connected to 2 antenna units. 4 sub arrays can work independently and construct independent 4 beams from 32 antennas. The 4 sub arrays can also work together to construct a single beam with 128 antennas. The 28TR64DP128 integrates 4 bi-directional up/down converters, which can expand any IF device from 2 to 3.8 GHz to the 28GHz.

Each sub array built into 28TR64DP128 can achieve high-performance dynamic beam scanning in a total of 4096 states within a horizontal+/-60 ° and vertical+/-30 ° range. The sub array EIRP is 51dbm, and when used with 4 sub arrays in combination mode, the EIRP is as high as 59dBm, with an EVM as low as 2%. It can support QAM256 or high-order modulation and achieve rapid development of millimeter wave communication systems.

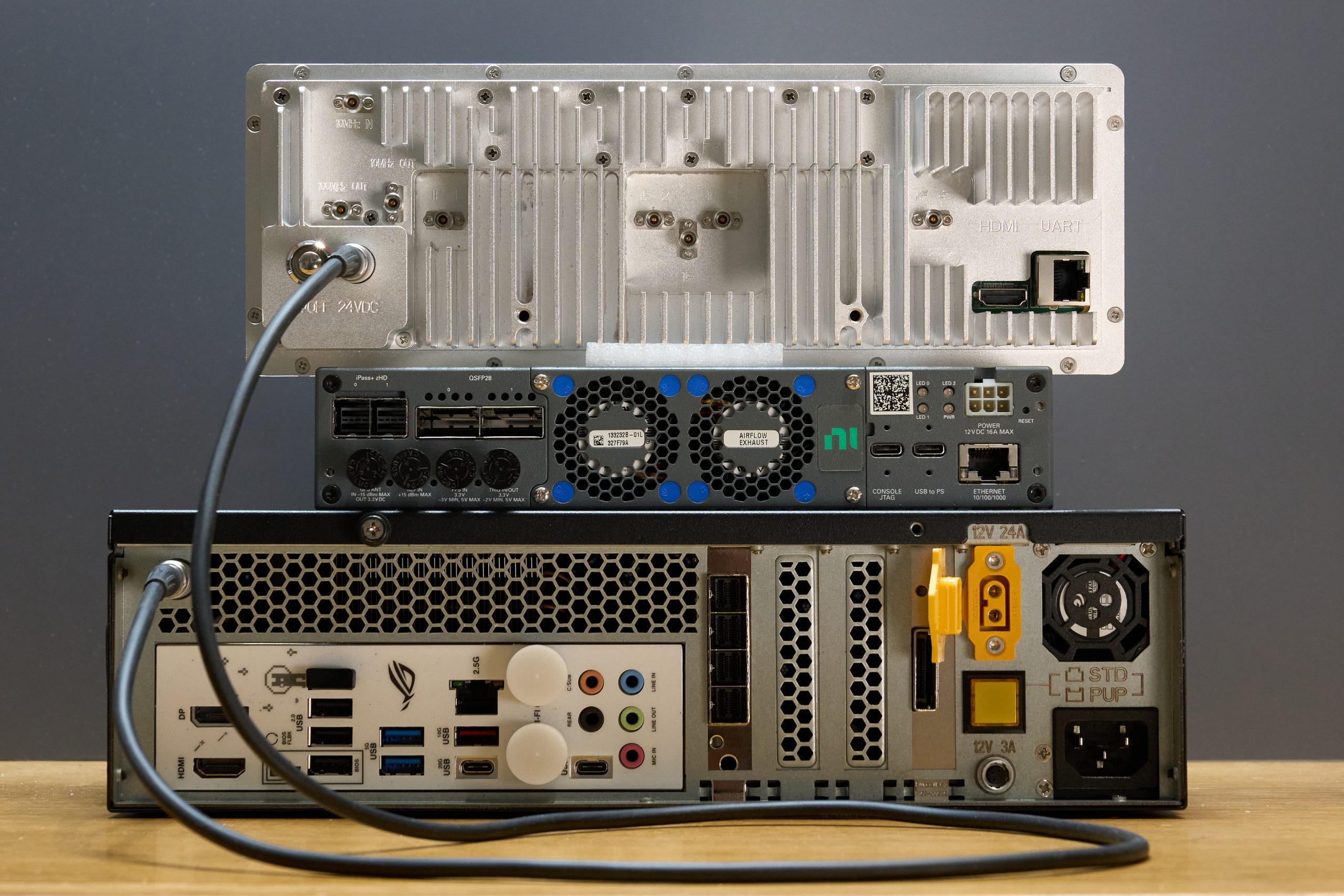

As a 4-channel millimeter wave phased array, the 28TR64DP128 can be used in conjunction with most SDR platforms on the market to extend Sub6G SDR devices to the millimeter wave frequency band. For example, the USRP X410 with a bandwidth of 400MHz and frequency coverage of 1M-7.2GHz can achieve millimeter wave four beam transmission and reception through a single 28TR64DP128.

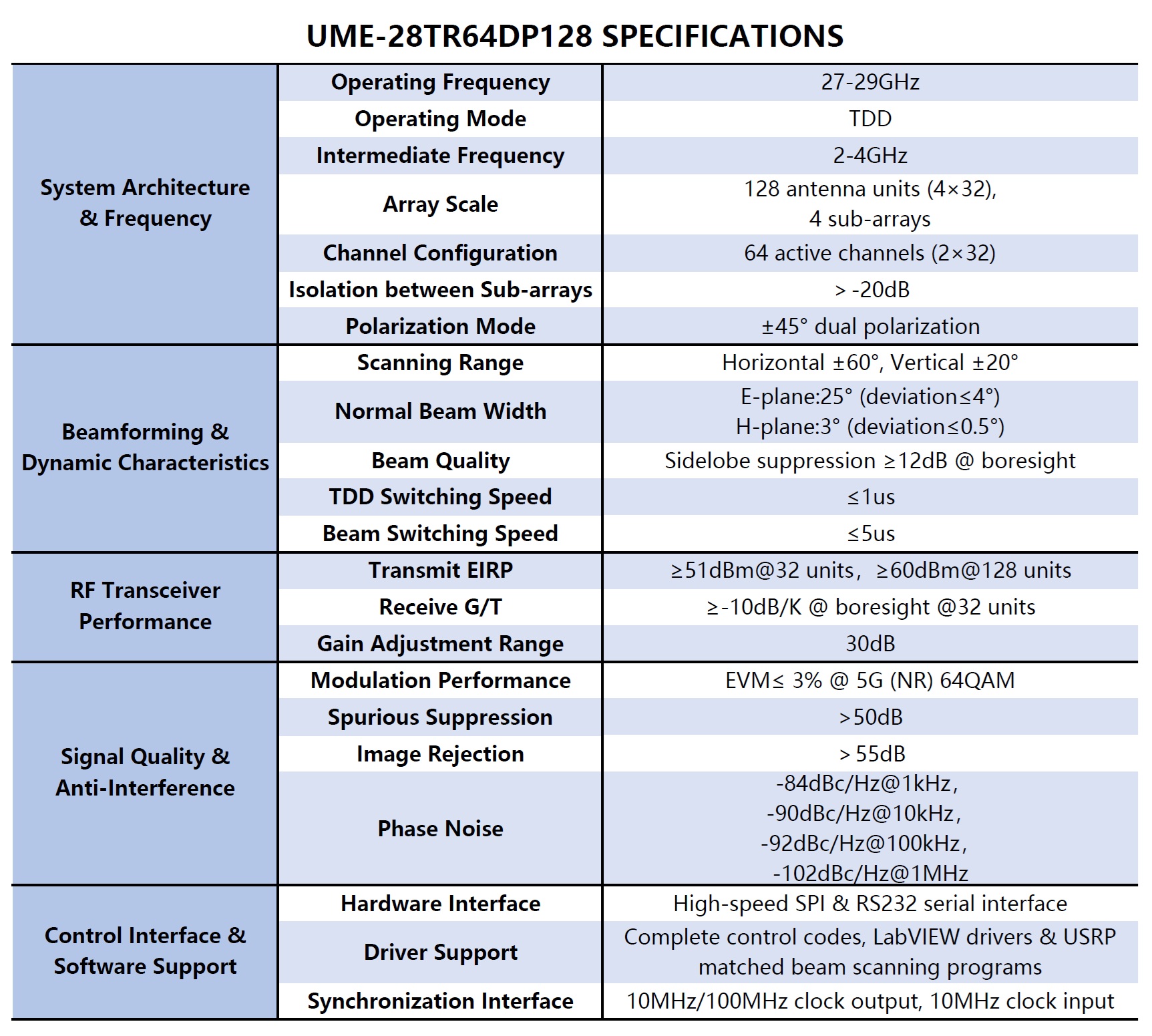

Specification

Specification



RF frequency range

27-29GHz

Duplex mode

TDD

Number of subarrays

4

Total active channels

64

Number of subarray antenna units

4×8

Array size

4×32

Polarisation mode

+45×2, -45×2

Sidelobe Suppression

≥12dB@normal direction

Beam scanning range

±60︒ (horizontal direction),

±30︒ (vertical direction)

Beam switching speed

<3us

Transmit EIRP

≥51dBm @32 units

≥60dBm @128 units

Receive G/T

single ≥ -10dB/K @32 units

IF frequency

2-4GHz

Gain control dynamic range

20dB

Transmit IF input power

-15dBm

Receive mirror rejection

>55dB

Transmit mirror sideband rejection

>60dB

Transmit spurious rejection

>50dB

Phase noise

-84dBc/Hz@1kHz,

-90dBc/Hz@10kHz,

-92dBc/Hz@100kHz,

-112dBc/Hz@1MHz

Overview

The UME-28TR64DP128 has 4 antenna sub arrays, each containing 32 antenna units arranged in a 4×8 manner. Each subarray has 16 TR channels (including phase shifter, LAN, PA, and TR switching), and each TR channel is connected to 2 antenna units. 4 sub arrays can work independently and construct independent 4 beams from 32 antennas. The 4 sub arrays can also work together to construct a single beam with 128 antennas. The 28TR64DP128 integrates 4 bi-directional up/down converters, which can expand any IF device from 2 to 3.8 GHz to the 28GHz.

Each sub array built into 28TR64DP128 can achieve high-performance dynamic beam scanning in a total of 4096 states within a horizontal+/-60 ° and vertical+/-30 ° range. The sub array EIRP is 51dbm, and when used with 4 sub arrays in combination mode, the EIRP is as high as 59dBm, with an EVM as low as 2%. It can support QAM256 or high-order modulation and achieve rapid development of millimeter wave communication systems.

As a 4-channel millimeter wave phased array, the 28TR64DP128 can be used in conjunction with most SDR platforms on the market to extend Sub6G SDR devices to the millimeter wave frequency band. For example, the USRP X410 with a bandwidth of 400MHz and frequency coverage of 1M-7.2GHz can achieve millimeter wave four beam transmission and reception through a single 28TR64DP128.



Specification



RF frequency range

27-29GHz

Duplex mode

TDD

Number of subarrays

4

Total active channels

64

Number of subarray antenna units

4×8

Array size

4×32

Polarisation mode

+45×2, -45×2

Sidelobe Suppression

≥12dB@normal direction

Beam scanning range

±60︒ (horizontal direction),

±30︒ (vertical direction)

Beam switching speed

<3us

Transmit EIRP

≥51dBm @32 units

≥60dBm @128 units

Receive G/T

single ≥ -10dB/K @32 units

IF frequency

2-4GHz

Gain control dynamic range

20dB

Transmit IF input power

-15dBm

Receive mirror rejection

>55dB

Transmit mirror sideband rejection

>60dB

Transmit spurious rejection

>50dB

Phase noise

-84dBc/Hz@1kHz,

-90dBc/Hz@10kHz,

-92dBc/Hz@100kHz,

-112dBc/Hz@1MHz
