2-channel GPS Clock Distribution Module - Gaustech

GSR-Sync is a high-end GPS disciplined OCXO based synchronizer that can output 2-channel 1 PPS signals and 2-channel 10MHz REF clock, providing unified triggering and clock reference for USRP or other devices.

Overview

Overview

  • GSR-Sync is a 2-channel GPS clock synchronizer that can output 2-channel 1 PPS signals and 2-channel 10MHz REF clock, providing unified triggering and clock reference for USRP or other devices.
Features

Features

  • Built in high stability SC switching OCXO

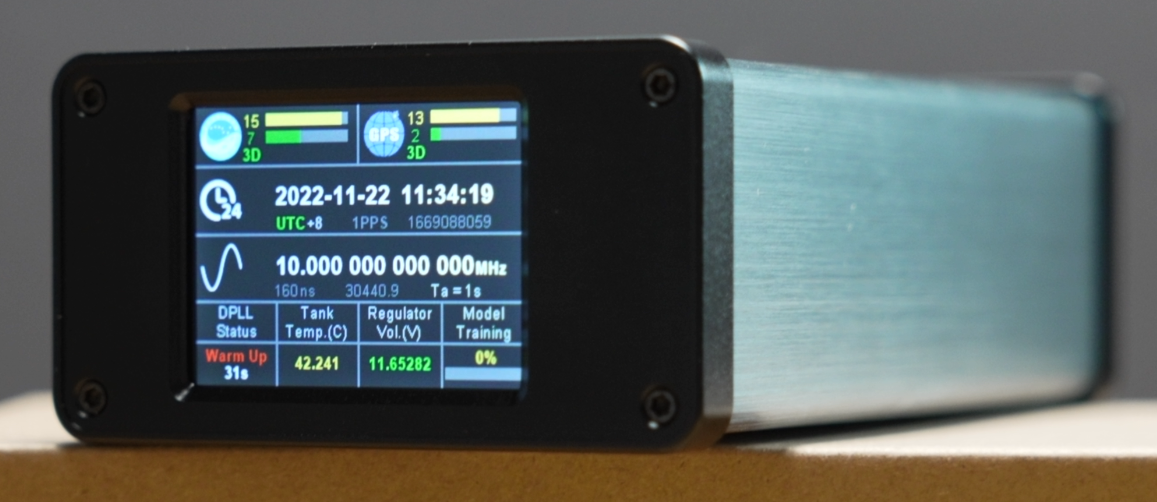

  • Color screen display of device operation status
  • Second stability:<2E-12
  • Near end phase noise:< -100dBc@1Hz

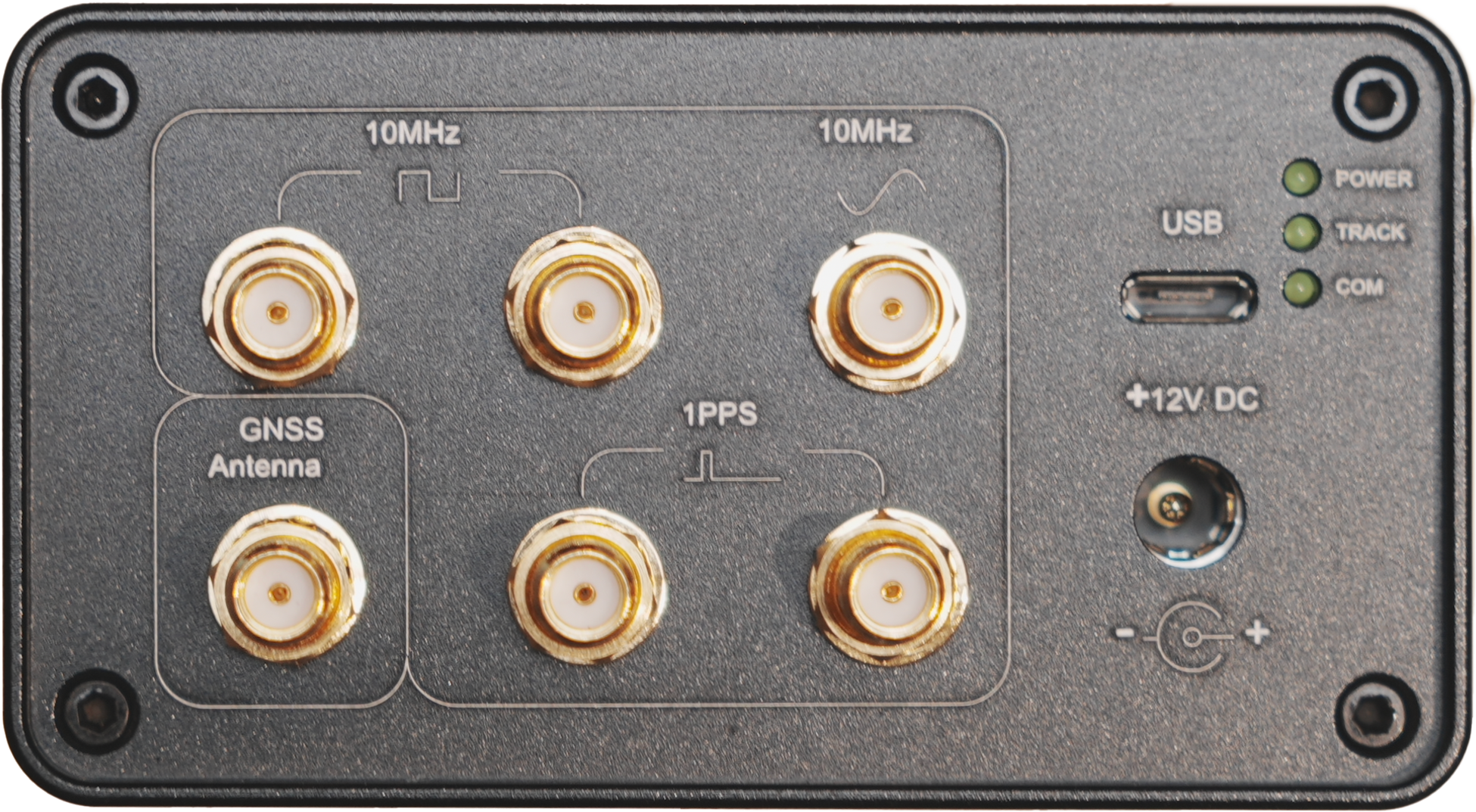

  • Output: 2 channels of 10MHz square wave (3.3Vpp), 2 channels of 1PPS (3.3V)
  • Positioning and timing: high-precision BDS+GPS dual-mode receiver, timing accuracy<20ns, positioning accuracy<1m

Overview

  • GSR-Sync is a 2-channel GPS clock synchronizer that can output 2-channel 1 PPS signals and 2-channel 10MHz REF clock, providing unified triggering and clock reference for USRP or other devices.

Features

  • Built in high stability SC switching OCXO
  • Color screen display of device operation status
  • Second stability:<2E-12
  • Near end phase noise:< -100dBc@1Hz
  • Output: 2 channels of 10MHz square wave (3.3Vpp), 2 channels of 1PPS (3.3V)
  • Positioning and timing: high-precision BDS+GPS dual-mode receiver, timing accuracy<20ns, positioning accuracy<1m
