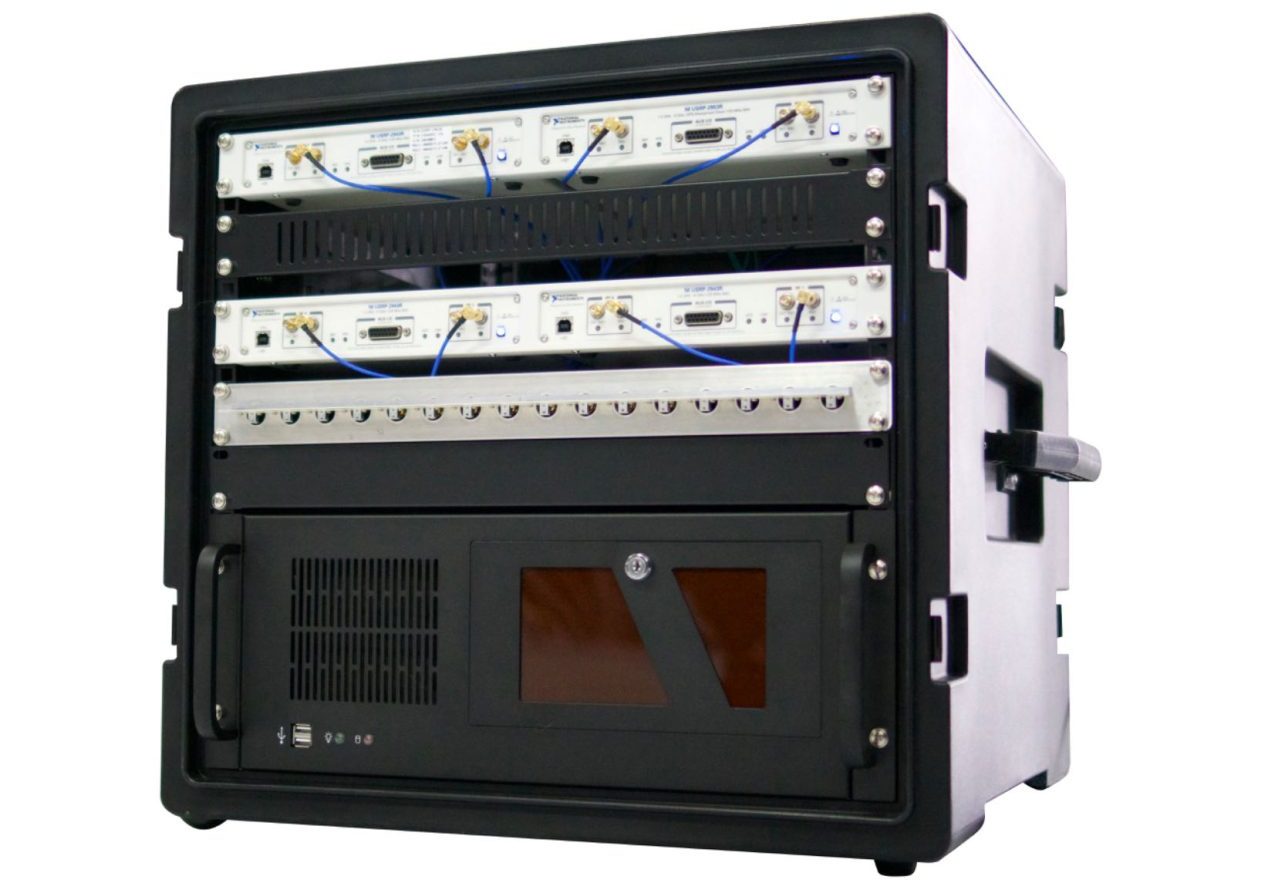

GSR-L16 on MIMO System
GSR-L16 with USRP

GSR-L8/L16

MIMO linear array antenna, 8 units, 5.5GHz - Gaustech

GSR-L8 is a 8-unit 5.5GHz MIMO linear array antenna and can be combined into in 16, 32, 64 mode.

Overview

Overview

GSR-L8 is a 8-unit 5.5GHz MIMO linear array antenna and can be combined into in 16, 32, 64 mode.

Specification
  • Specification

    Units 8
    Fequency range 5.3-5.7 GHz
    Polarization mode Vertical
    Gain 11 ± 1 dBi
    Side lobe suppression ≥ 10dB
    3dB beam width (horizontal) 96 ± 6 °
    3dB beam width (vertical) 14 ± 2 °




Overview

GSR-L8 is a 8-unit 5.5GHz MIMO linear array antenna and can be combined into in 16, 32, 64 mode.

  • Specification

    Units 8
    Fequency range 5.3-5.7 GHz
    Polarization mode Vertical
    Gain 11 ± 1 dBi
    Side lobe suppression ≥ 10dB
    3dB beam width (horizontal) 96 ± 6 °
    3dB beam width (vertical) 14 ± 2 °
