UME-0618UDx4

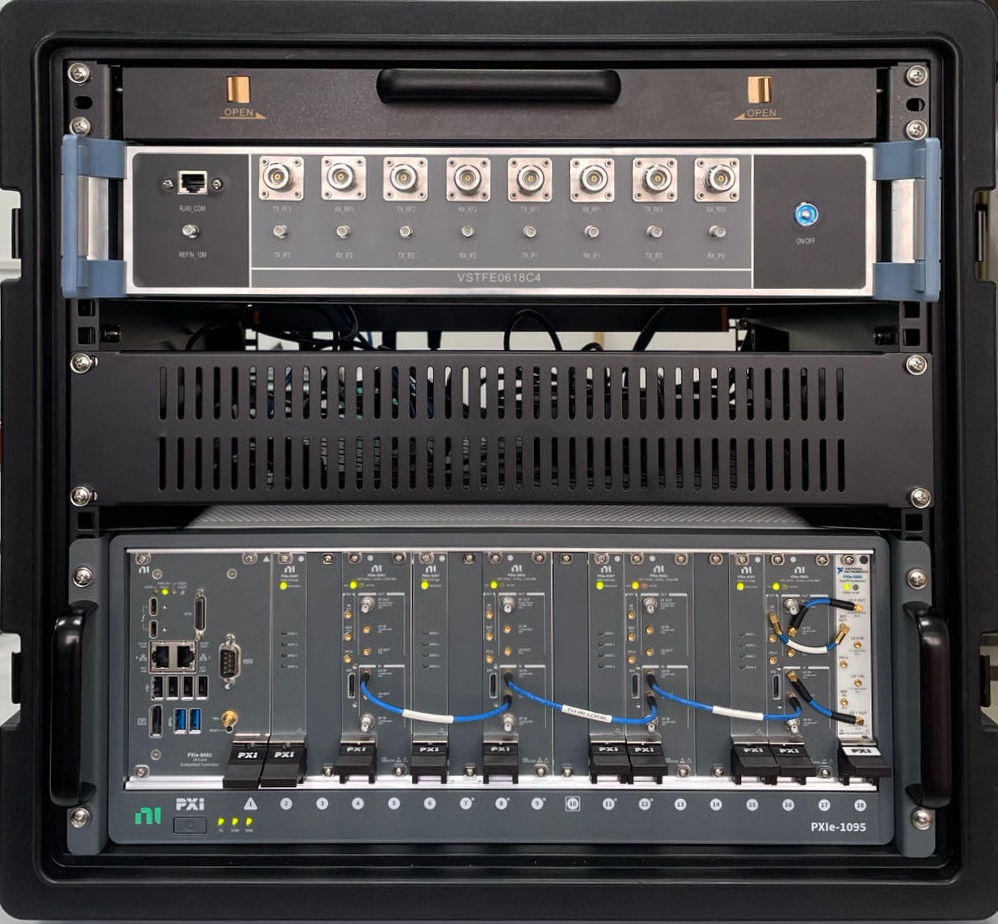

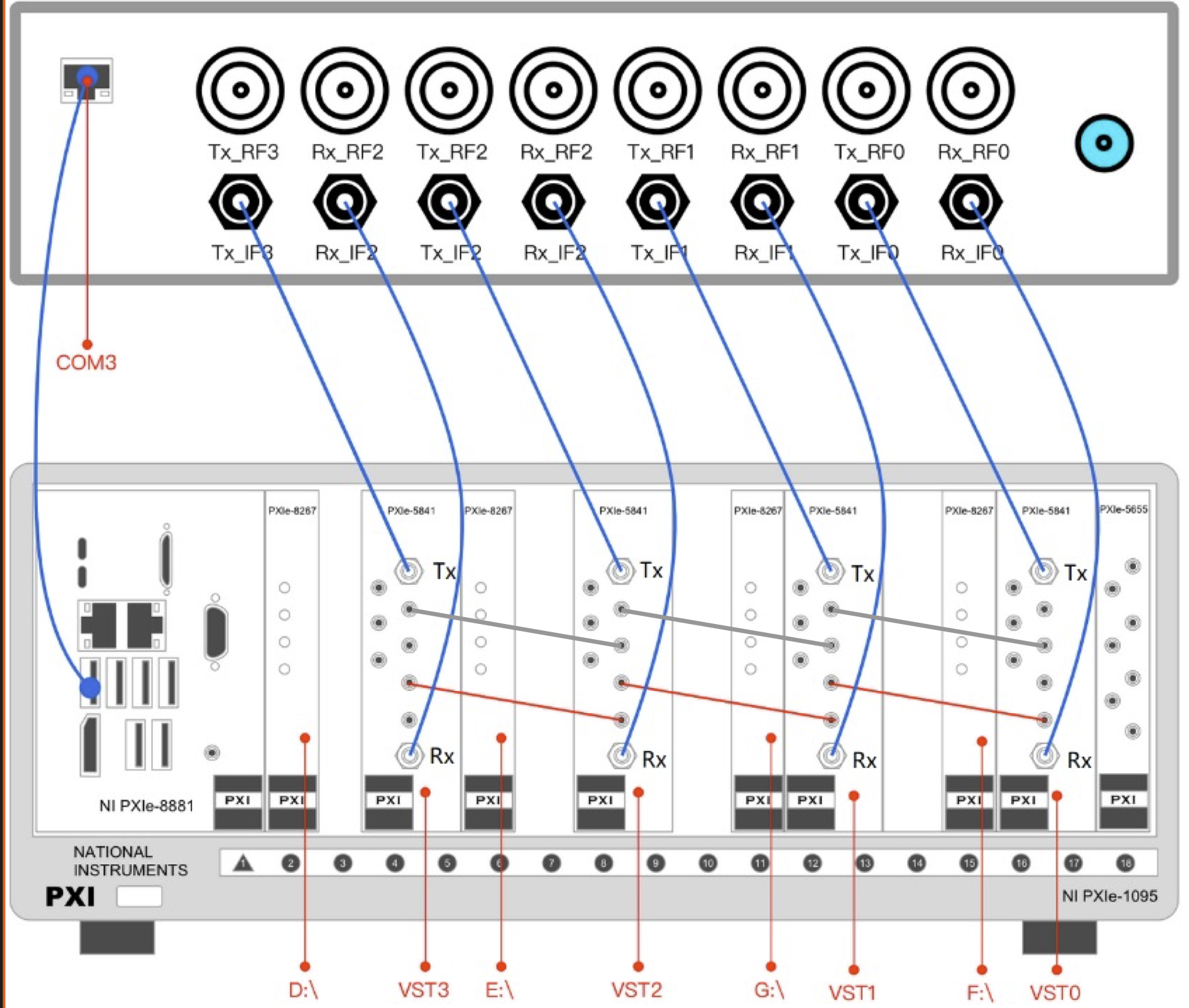

UME-0618UDx4 connected to PXIe-5841
1M~18GHz 4-Channels RF Streaming System

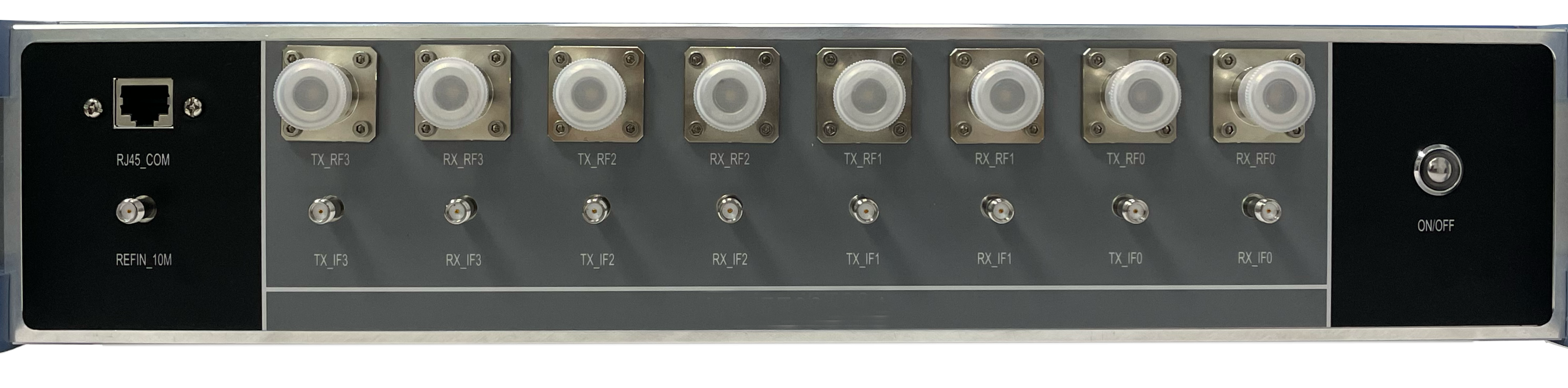

UME-0618UDx4

6~18GHz broadband up/down converter, 4 channels, - Gaustech

The UME-0618UDx4 is a 4-channel up/down converter with continuous coverage of 6~18GHz. It has an IF input range of 1.95~4.5GHz, with 400MHz instantaneous bandwidth and built-in power amplifier which has maximum Tx power up to 10dBm.

Overview

Overview

The UME-0618UDx4 is a broadband up- and down-converter designed for sub6G devices, with continuous band coverage of C, X, and Ku bands, and shared LOs (internal or external LO) between 4 channels for phase-alignment. The UME-0618UDx4 provides excellent RF performance comparable to that of a box instrument. It can be flexibly used with IF equipment such as NI USRP and NI PXIe-584x series VST etc. The UME-0618UDx4 also provides API and UI source code under LabVIEW, which allows users to easily configure the hardware parameters of the UME-0618UDx4 through the UI.

Specification
  • Specification



    RF Frequency Range

    6~18GHz

    IF Frequency Range

    1.95~4.5GHz

    Number of Channels

    4

    Instantaneous Bandwidth

    400MHz

    Tx Gain Range -25~15dB
    Maximum RF Output Power 10dBm
    Rx Gain Range -25~10dB
    Noise Figure ≤15dB
    Flatness ±1.5dB@400MHz BW

    Phase Noise (Tx/Rx)

    <-92dBc/Hz@1kHz
    <-100dBc/Hz@10kHz
    <-104dBc/Hz@100kHz
    <-116dBc/Hz@1MHz

    ACPR <-40dBc (Pout=5dBm)
    Image Suppression >60dBc
    IF Damage Input Power -10dBm
    RF Damage Input Power -25dBm@10dB Rx Gain,
    5dBm@-25dB Rx Gain
    LO Leakage Suppression >50 dBc
    Maximum IF Linear Output Power 0dBm

    Dimension

    2U

    Weigh

    10kg

Overview

The UME-0618UDx4 is a broadband up- and down-converter designed for sub6G devices, with continuous band coverage of C, X, and Ku bands, and shared LOs (internal or external LO) between 4 channels for phase-alignment. The UME-0618UDx4 provides excellent RF performance comparable to that of a box instrument. It can be flexibly used with IF equipment such as NI USRP and NI PXIe-584x series VST etc. The UME-0618UDx4 also provides API and UI source code under LabVIEW, which allows users to easily configure the hardware parameters of the UME-0618UDx4 through the UI.

  • Specification



    RF Frequency Range

    6~18GHz

    IF Frequency Range

    1.95~4.5GHz

    Number of Channels

    4

    Instantaneous Bandwidth

    400MHz

    Tx Gain Range -25~15dB
    Maximum RF Output Power 10dBm
    Rx Gain Range -25~10dB
    Noise Figure ≤15dB
    Flatness ±1.5dB@400MHz BW

    Phase Noise (Tx/Rx)

    <-92dBc/Hz@1kHz
    <-100dBc/Hz@10kHz
    <-104dBc/Hz@100kHz
    <-116dBc/Hz@1MHz

    ACPR <-40dBc (Pout=5dBm)
    Image Suppression >60dBc
    IF Damage Input Power -10dBm
    RF Damage Input Power -25dBm@10dB Rx Gain,
    5dBm@-25dB Rx Gain
    LO Leakage Suppression >50 dBc
    Maximum IF Linear Output Power 0dBm

    Dimension

    2U

    Weigh

    10kg
