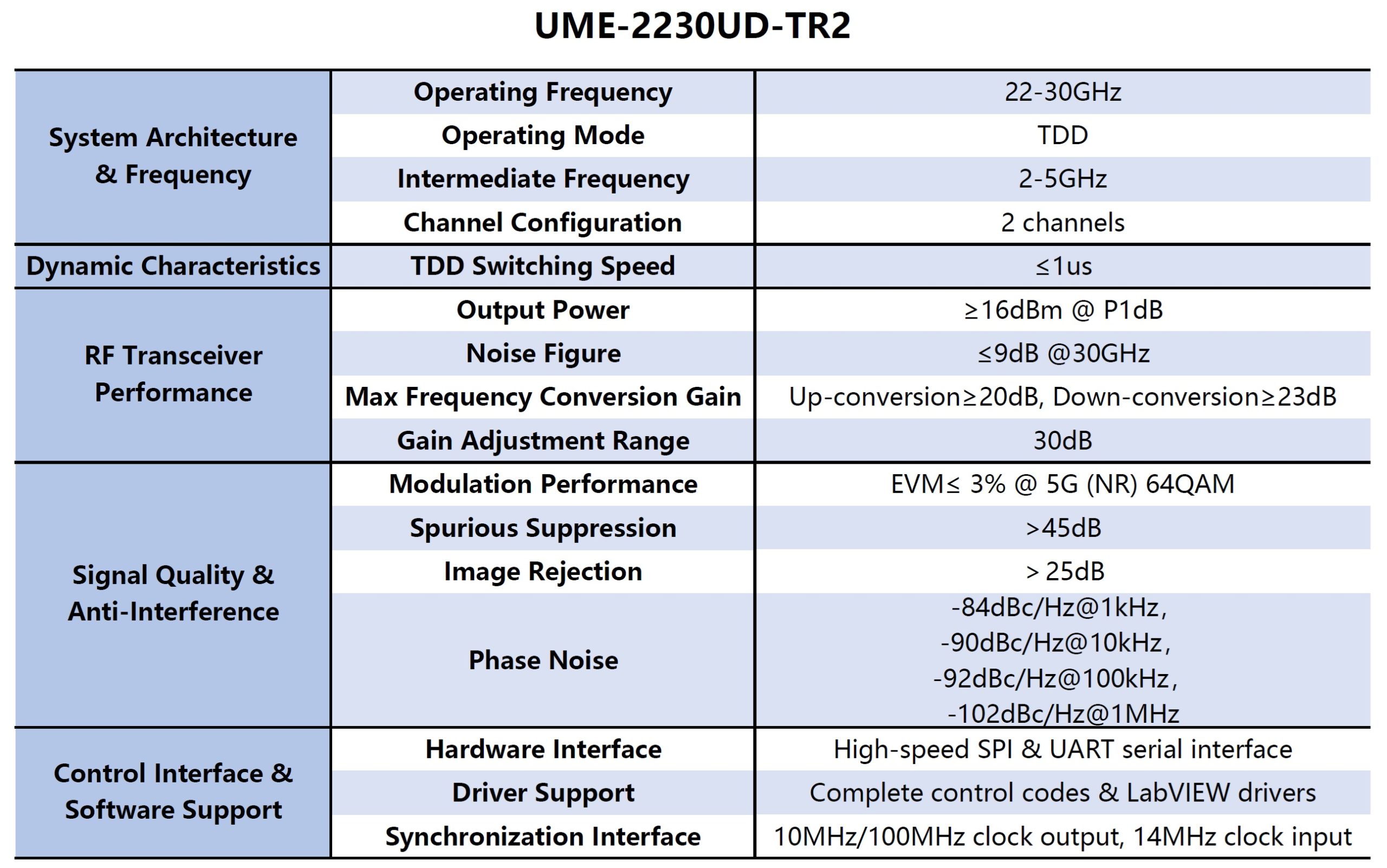

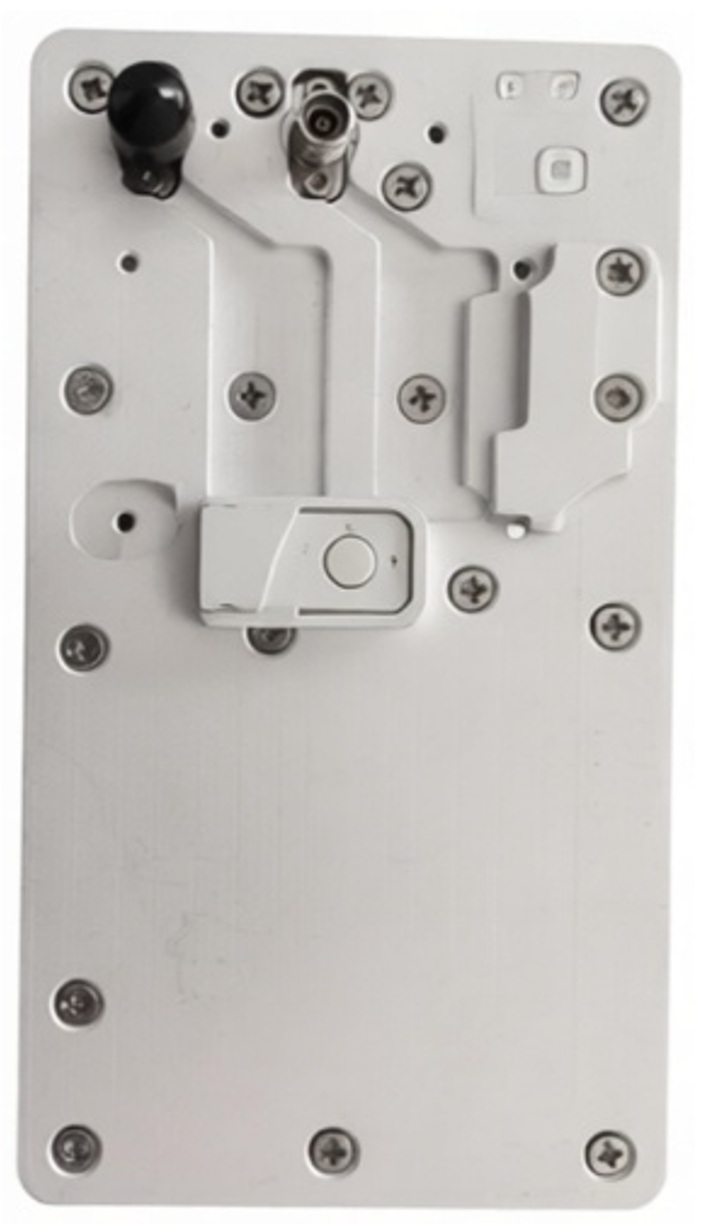

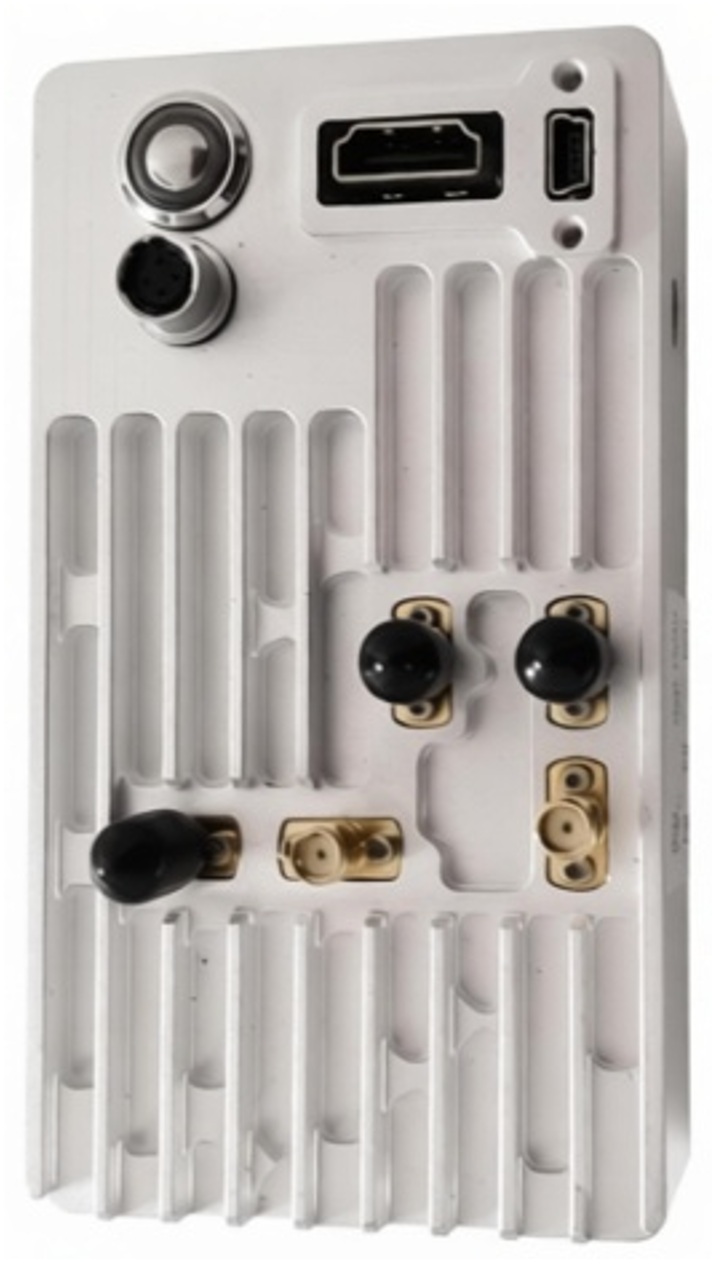

The UME-2230UD-TR2 is a millimeter-wave TDD transceiver frequency conversion front-end operating in the 22–30 GHz frequency band. Featuring superior noise performance and high transmit signal precision, it is applicable to scenarios including 5G NR millimeter-wave communication testing and measurement, satellite communication experiments, instrument measurement, and production line testing.



Boasting a compact form factor, the UME-2230UD-TR2 delivers a 30 dB dynamic range for both receive gain control and transmit power control. It is internally integrated with an ultra-low jitter reference clock and software-configurable low-phase-noise local oscillator. Additionally, it supports external reference clock synchronization and reference clock output, which greatly reduces auxiliary hardware requirements for testing and satisfies synchronization demands in various test scenarios.
