UME-28TR16
28GHz mmWave phased array antenna, 16 unit array, built-in up and down frequency converter - Gaustech

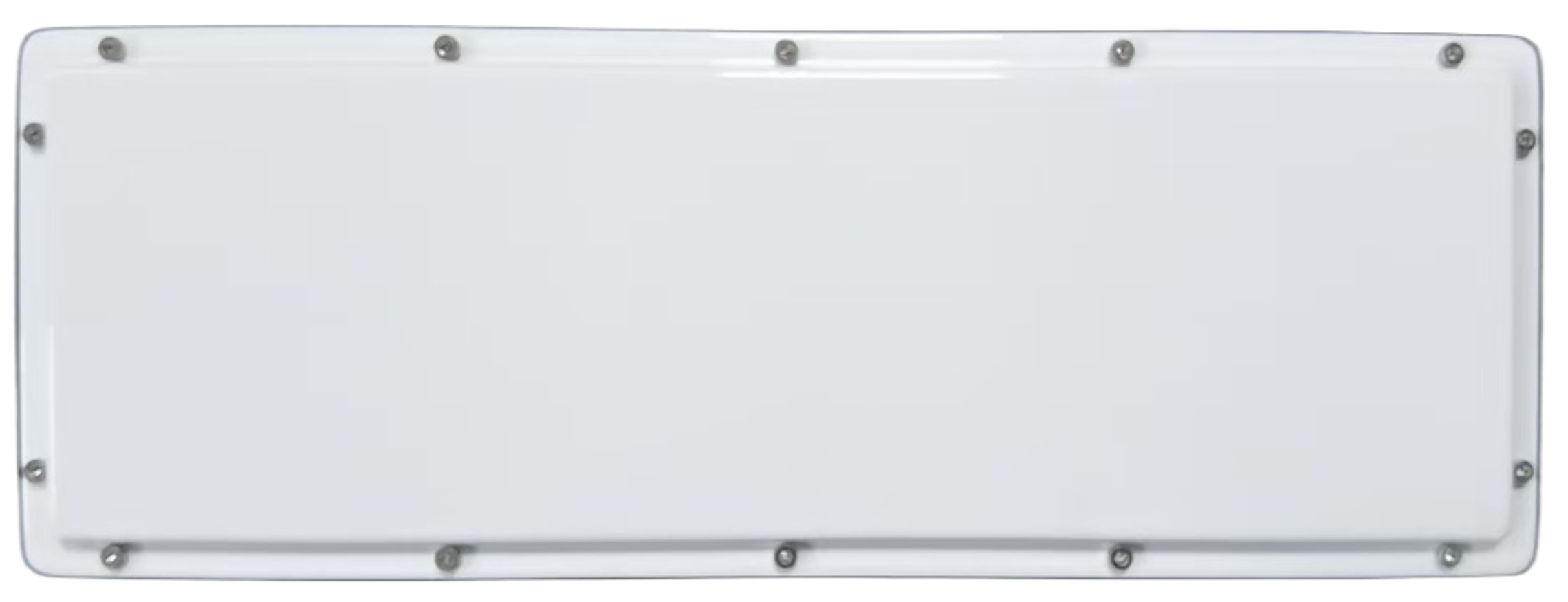

UME-28TR16 is a 16-elements mmWave Active Phased Array Antenna, with PA, LNA and phase-shifter for each element.
-
Overview
-
Overview
The UME-28TR16 is a 16-element millimeter-wave active phased array antenna, with each element equipped with a power amplifier (PA), low-noise amplifier (LNA) and phase shifter.Controllable via RS232, DB15 and HDMI digital I/O interfaces, it supports high-speed 1D beamforming. It features an RF frequency range of 27.2–29 GHz and an intermediate frequency (IF) range of 2–3.8 GHz, and is compatible for integration with NI PXI VST and USRP platforms. -

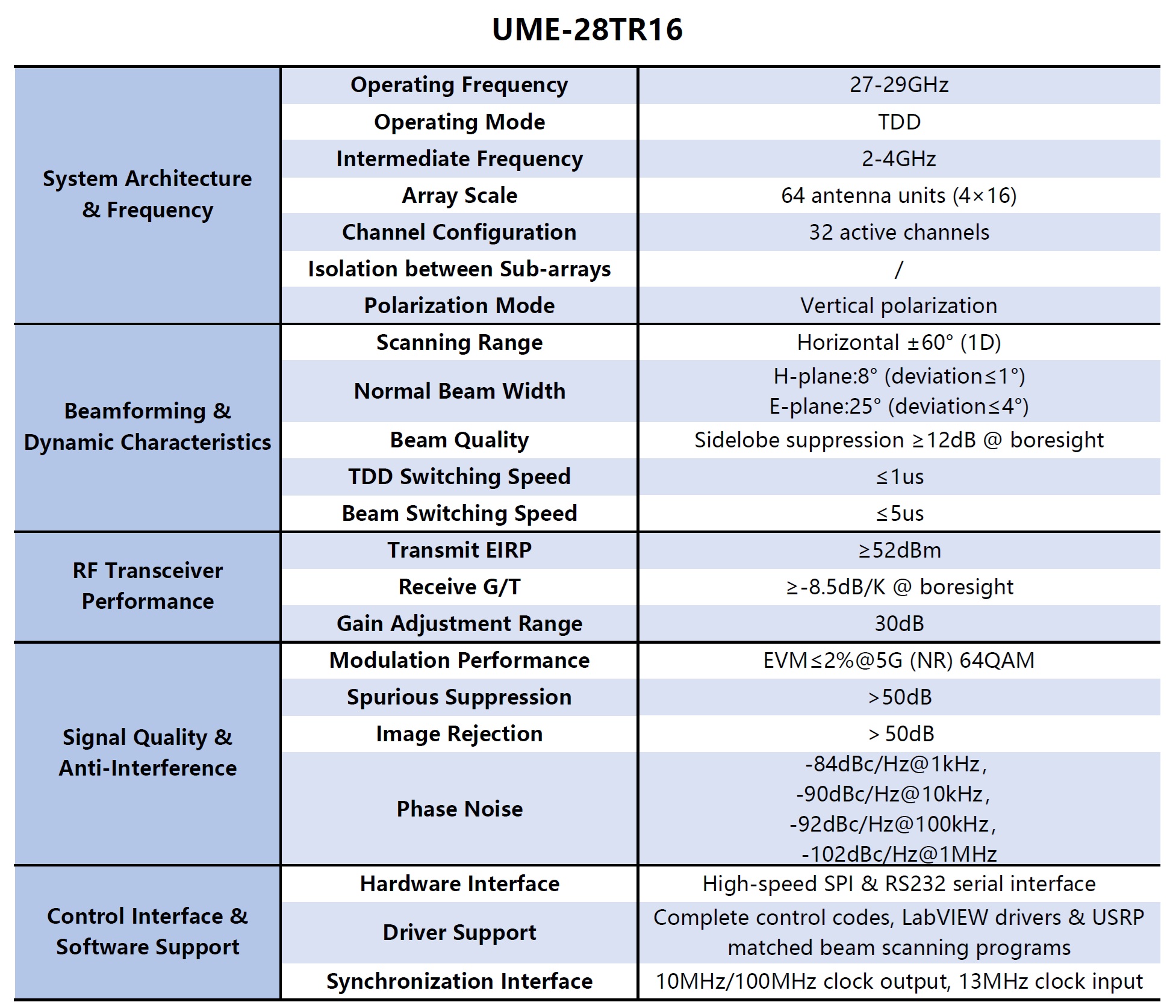

Specification
-
Overview
The UME-28TR16 is a 16-element millimeter-wave active phased array antenna, with each element equipped with a power amplifier (PA), low-noise amplifier (LNA) and phase shifter.

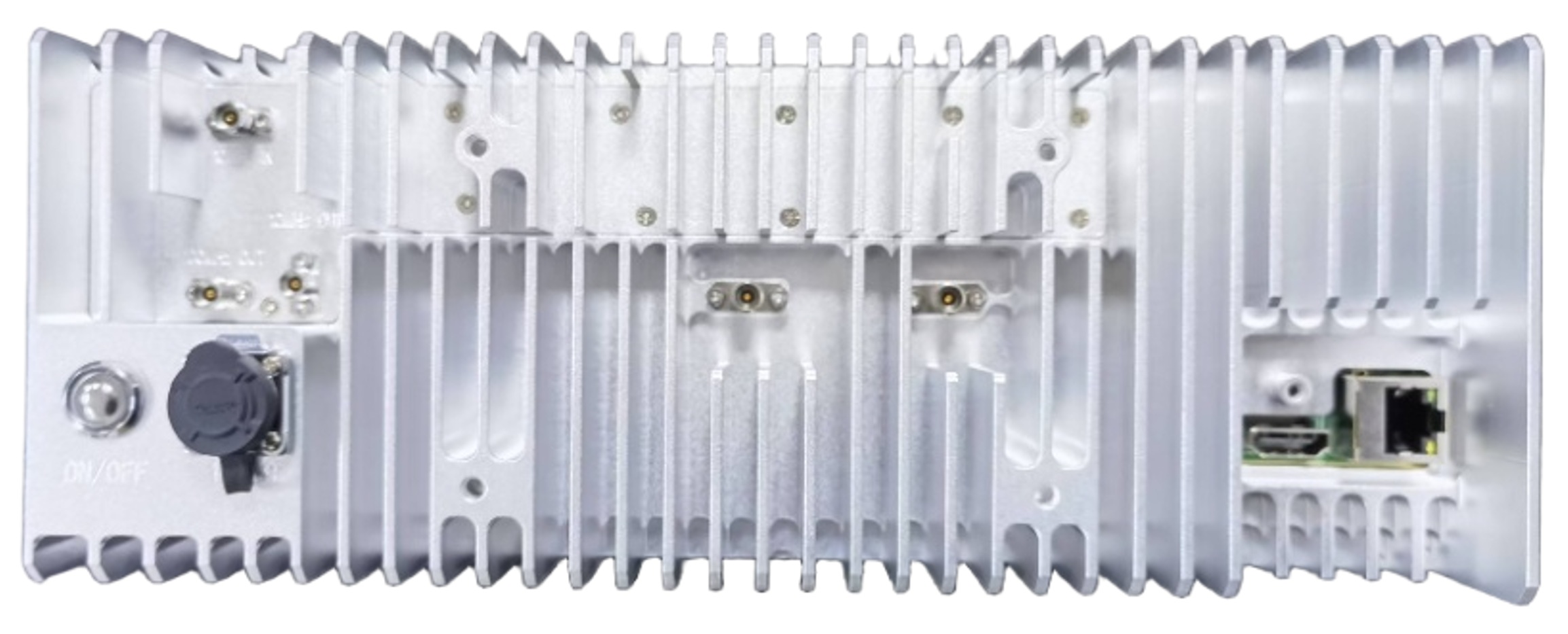

Controllable via RS232, DB15 and HDMI digital I/O interfaces, it supports high-speed 1D beamforming. It features an RF frequency range of 27.2–29 GHz and an intermediate frequency (IF) range of 2–3.8 GHz, and is compatible for integration with NI PXI VST and USRP platforms.
