Overview

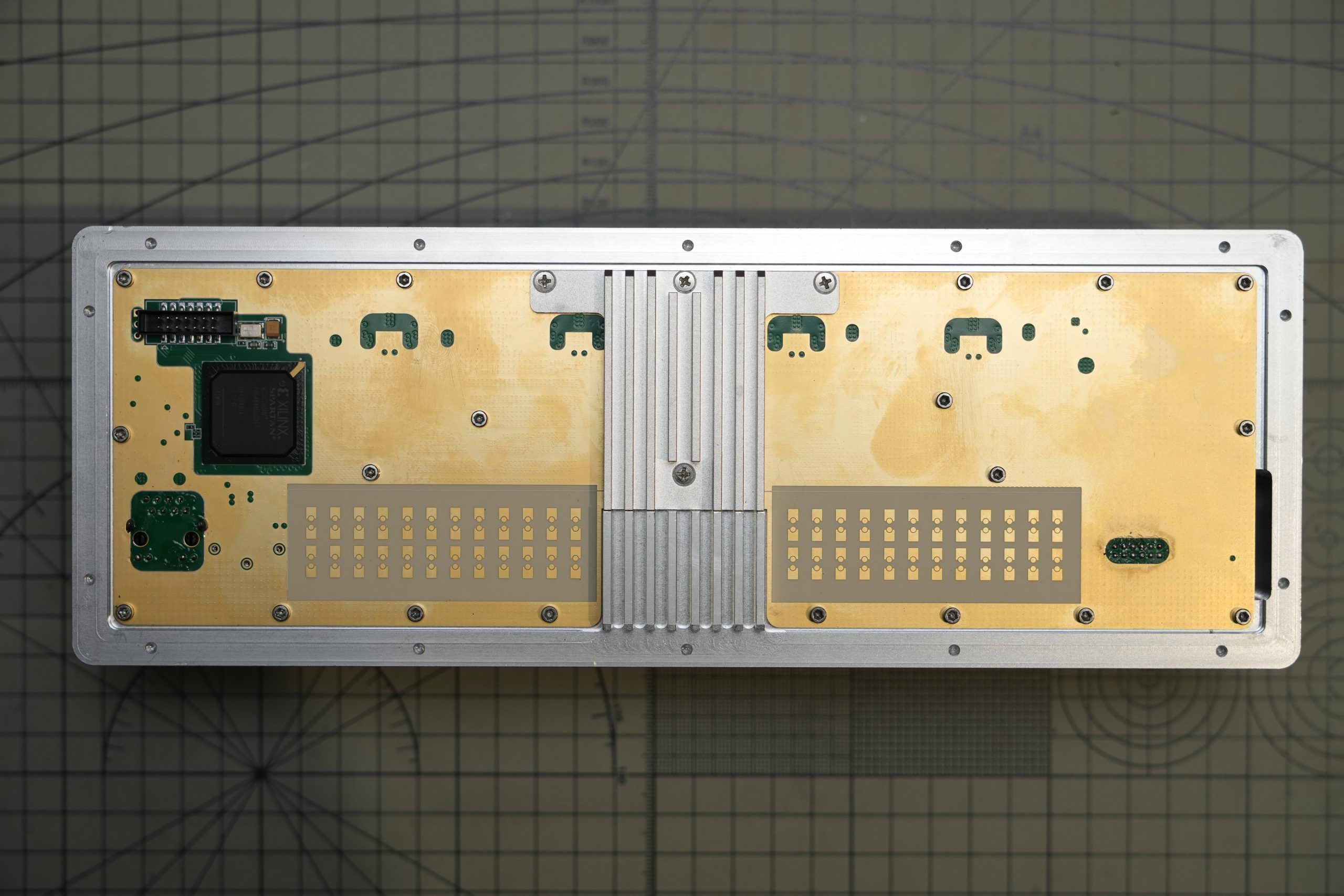

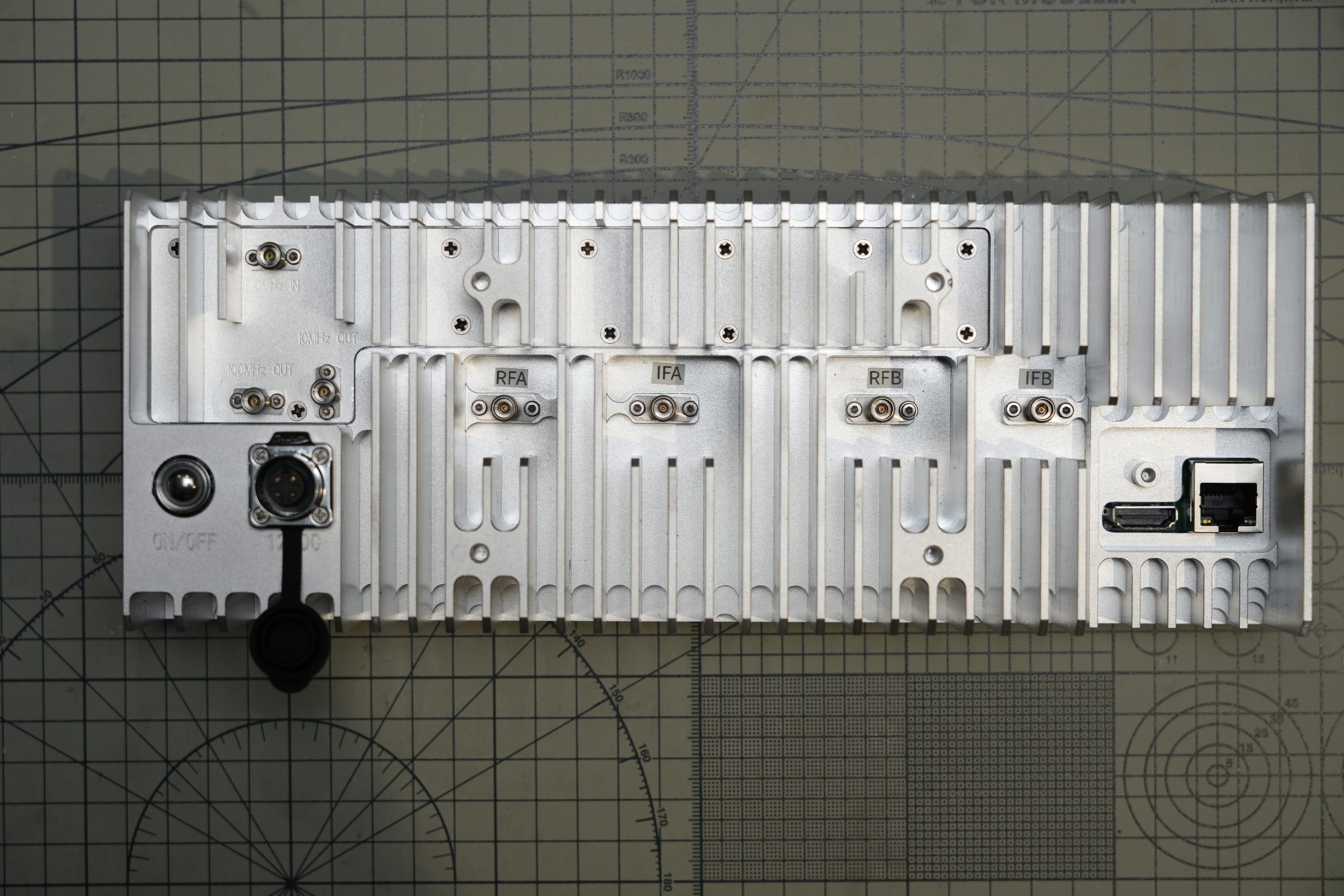

The UME-28TR48S is a 28GHz millimeter-wave phased array with TDD duplexing, operating in the frequency range of 27-29GHz. It supports the 3GPP 5G FR2 N257 band and can be used for 5G millimeter-wave wireless communication. The UME-28TR48S features two independently operating phased arrays (2T2R), making it suitable for millimeter-wave communication and sensing applications. The phased array integrates bidirectional frequency conversion circuits and a high-performance millimeter-wave local oscillator, enabling an S-band intermediate frequency transceiver interface of 2~4GHz, which facilitates connection with low-frequency digital sampling systems. Its performance supports high-order modulation schemes such as QAM64 and QAM256.

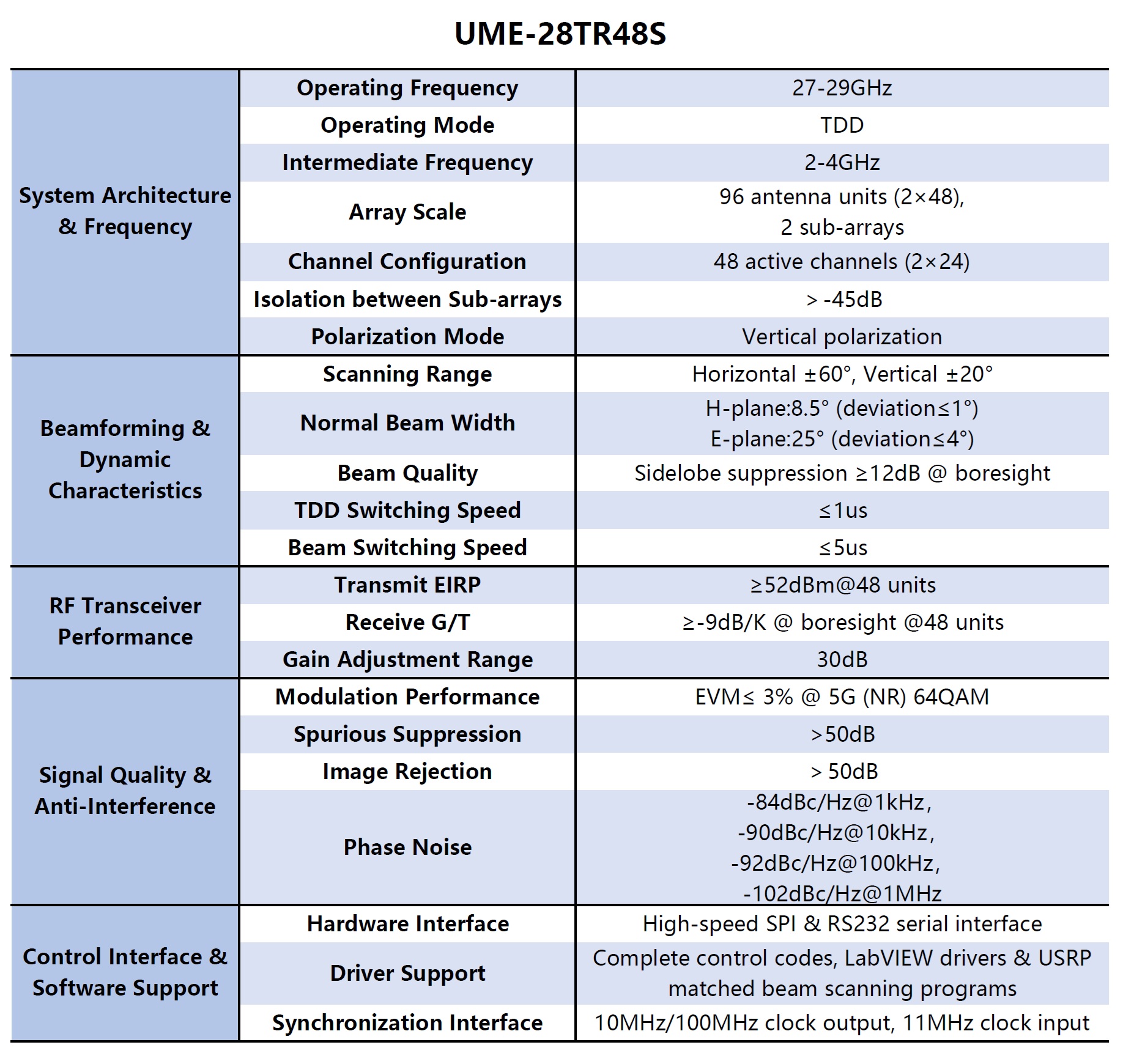

• 27GHz-29GHz RF operating bandwidth: 2GHz

• 2T2R, sub-array TDD time-division duplexing, two sub-arrays operating independently

• Supports a maximum instantaneous bandwidth of over 1GHz

• Vertical polarization

• 30dB transceiver gain control

• Intermediate frequency range: 2.0GHz-4GHz

• Integrated high-performance local oscillator, supports external 10M reference locking and internal reference clock output

• G/T: -10dB/K @ single array

• EIRP: 52dBm @ single array
