UME-28TR64

UME-28TR64

28GHz mmWave phased array antenna, 64 unit array, built-in up and down frequency converter - Gaustech

UME-28TR64 is a 64-elements mmWave Active Phased Array Antenna, with PA, LNA and phase-shifter for each element.

Overview

Overview

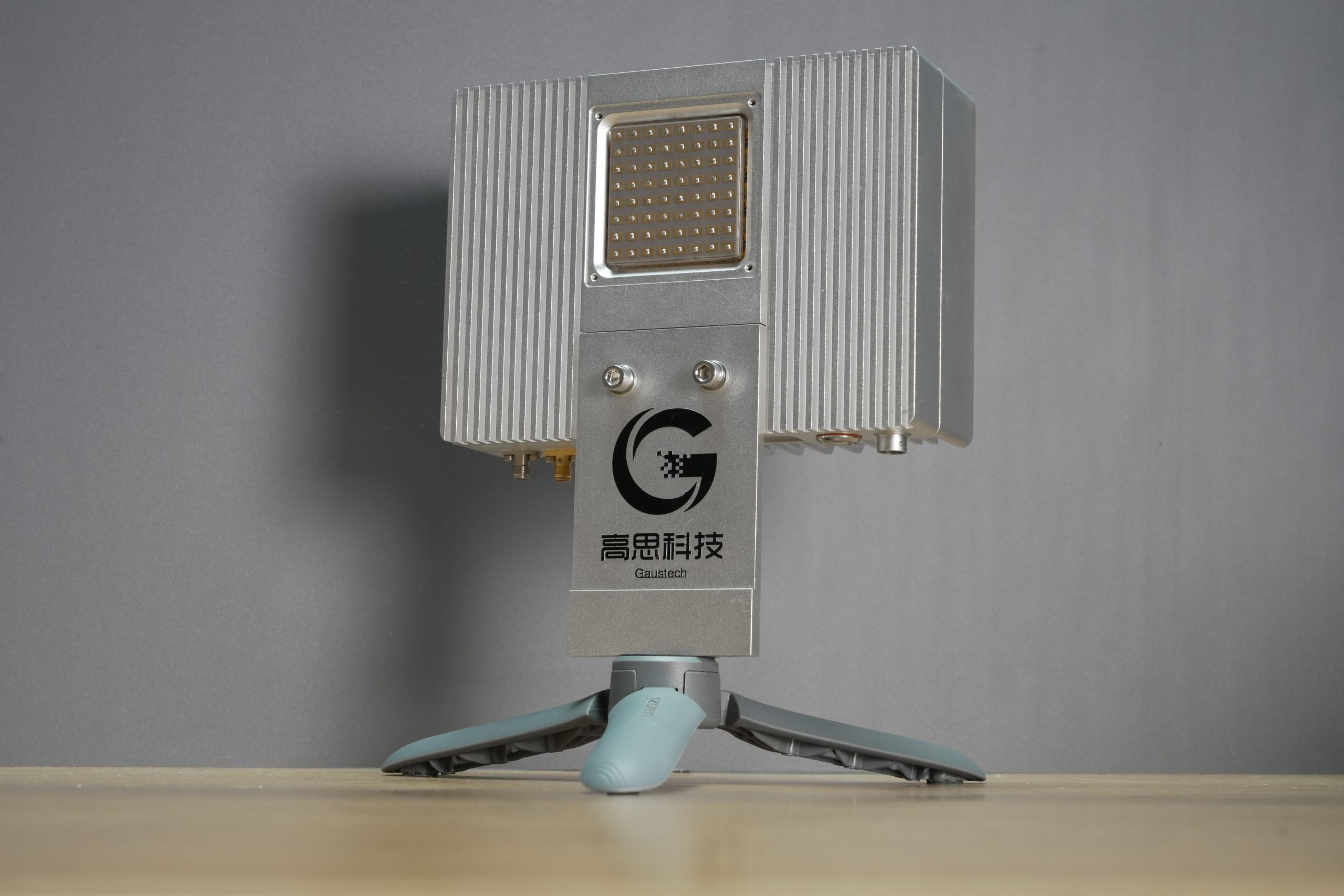

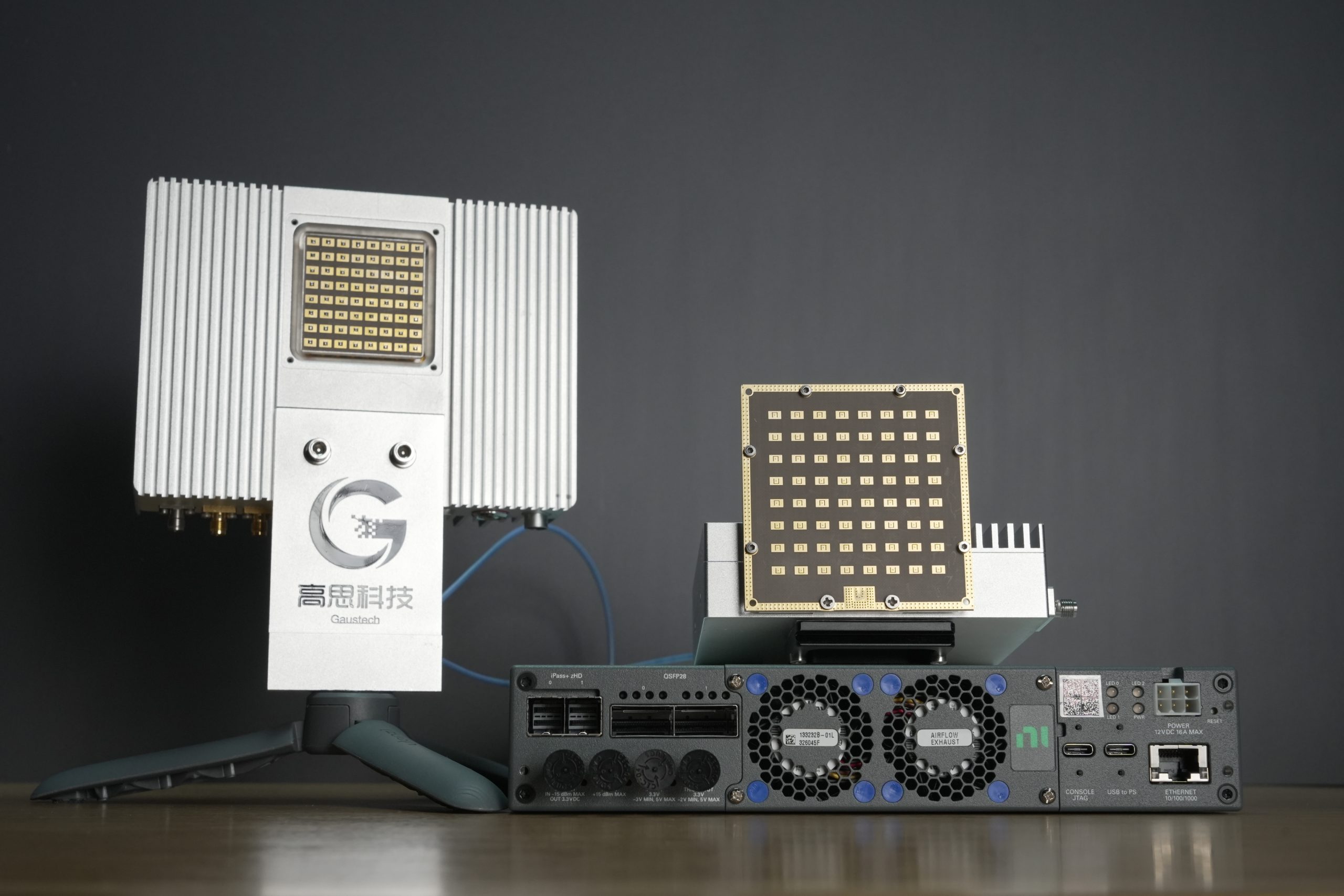

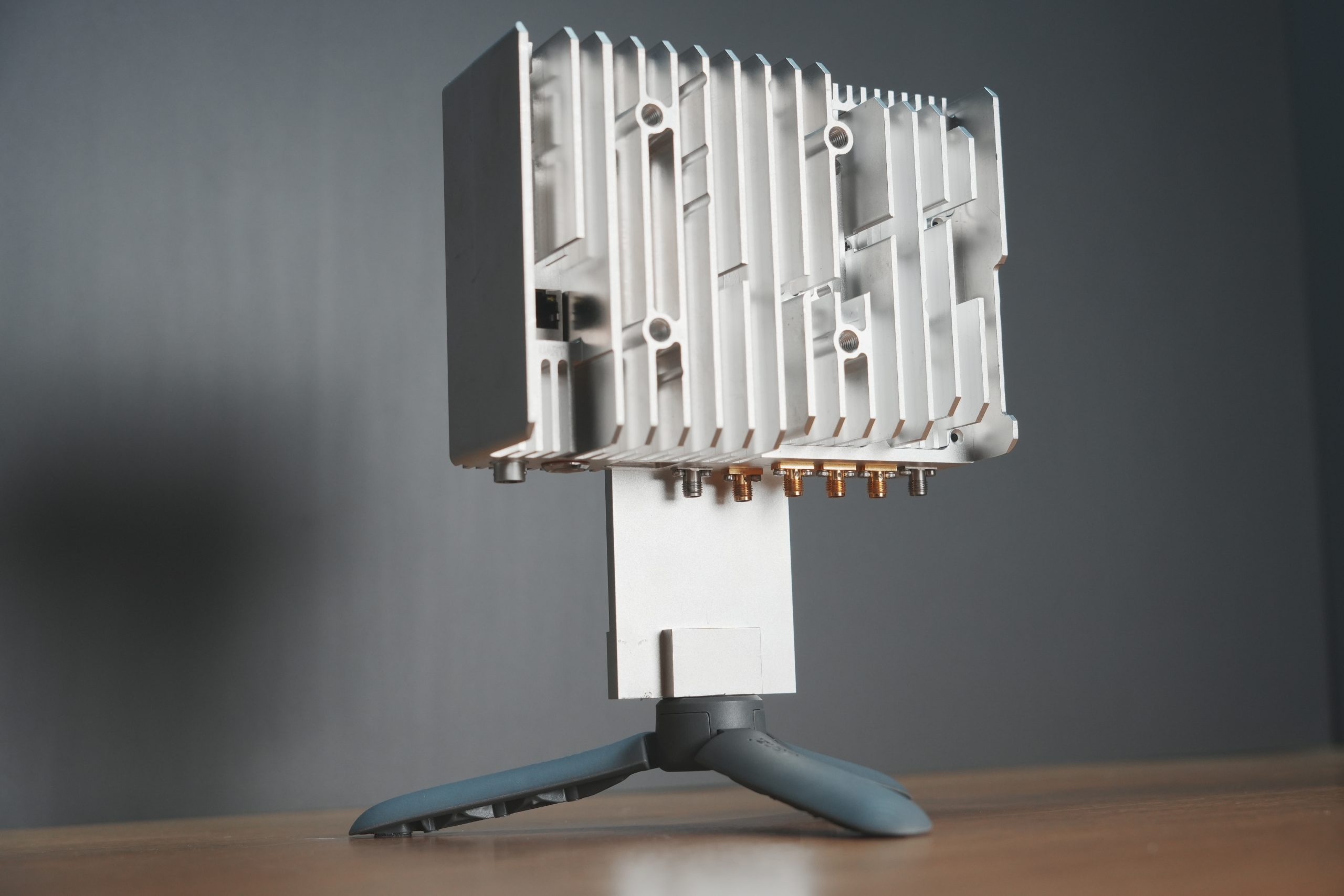

UME-28TR64 is a 64-elements mmWave Active Phased Array Antenna, with PA, LNA and phase-shifter for each element. The antenna can be controlled by USB-RS232 port via C dll command or high-speed SPI to  perform high-speed 2D beam scanning. The input and output frequency range of UME-28TR64 is 27~29GHz which can be integrated with NI mmWave VST and USRP. It can also be integrated with any IF system with external LO and mixer.

Highlights

Highlights

  • Ultra-compact handheld design, with integrated up/down converter.
  • High performance, EVM as low as 2%.
  • PA and LNA integrated,  EIRP 50dBm.
  • Low noise figure comparing to peer vendor.

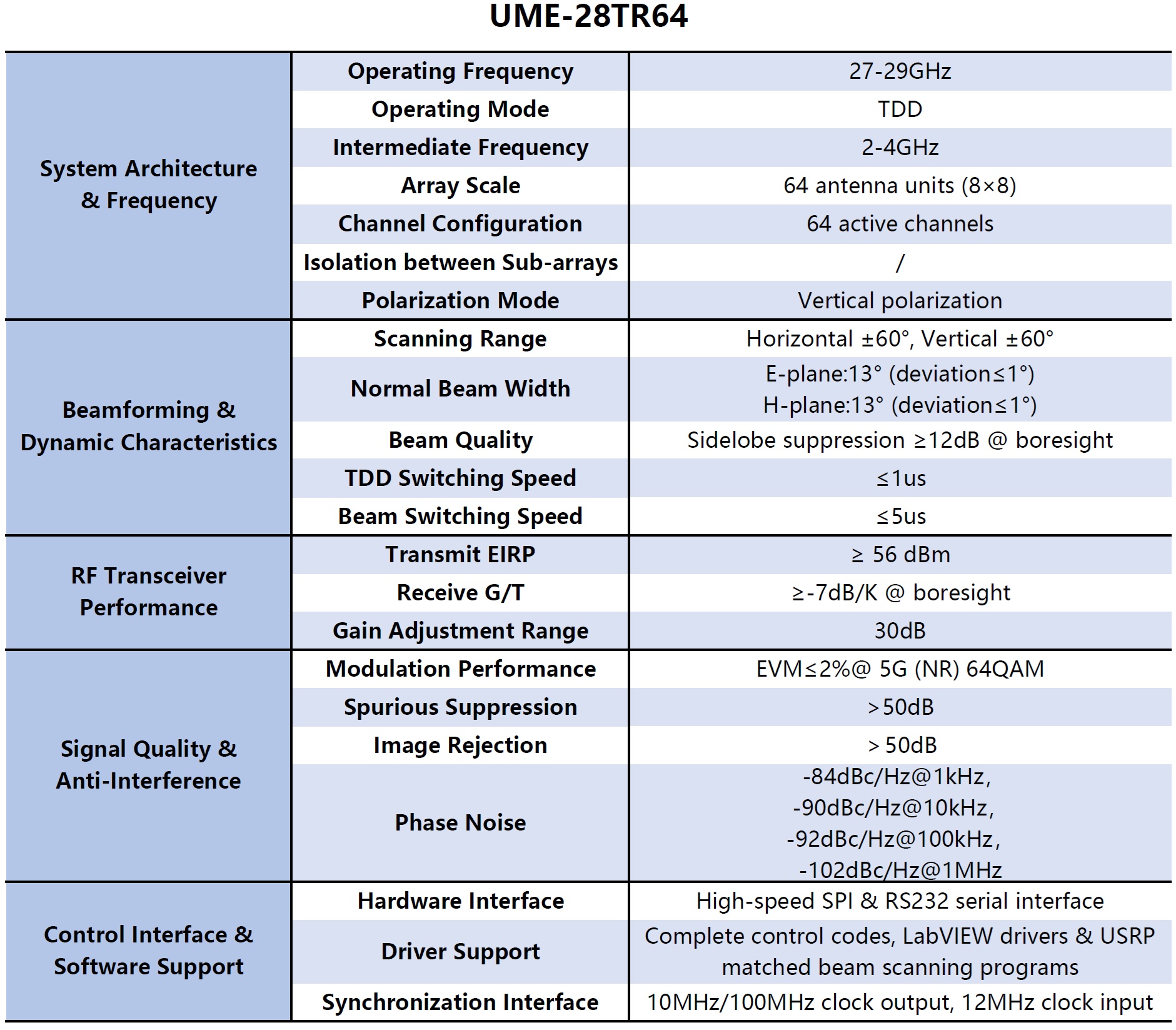

Specification
  • Specification



    RF Frequency Range

    27.2 ~ 29 GHz

    IF Frequency Range

    2~3.8GHz

    Duplex Mode

    TDD

    Antenna Type

    8 x 8 Array, Vertical Polarization

    Sidelobe Suppression

    ≥  12.5 dB (normal direction)

    ≥  10 dB (other direction)

    Beam Scanning Range

    ± 60° (2D)

    Number of Beams

    61(H) x 61(V)

    Beam Scanning Rate

    ≤ 10 μs/beam

    Tx EIRP

    ≥ 50 dBm @ P1dB

    Tx Gain Range

    -2 ~ 29 dB

    Maximum IF input power in Tx Mode

    -5 dBm (Single Tone),  -15dBm (PAPR=10)

    Maximum IF output  power in Rx Mode

    -11 dBm (Single Tone)

    Maximum Input RF power in Tx Mode

    5 dBm (Single Tone), -5 dBm (PAPR=10)

    Maximum output RF power in Rx Mode

    0 dBm (Single Tone)

    Receiver G/T

    ≥ -8 dB/K

    Rx Noise Figure

    ≤ 7 dB

    Rx Gain Range

    -8~ 23 dB

    Saturation Rx power(OTA)

    -45 dBm

    Phase Noise

    -93dBc/Hz @ 28GHz, 100kHz Offset

    EVM

    2%, -33dB

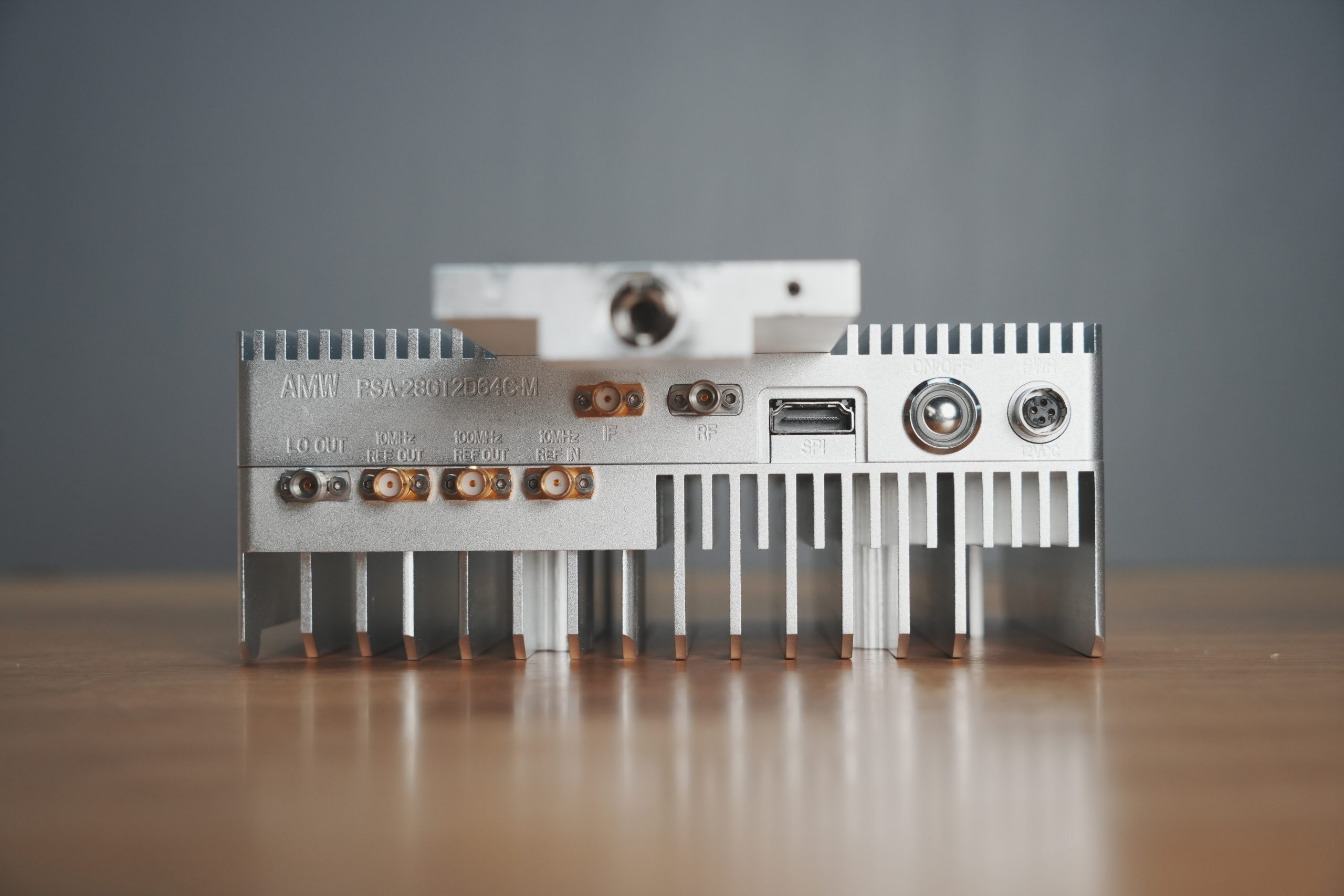

    RF/IF Connector

    2.92mm – K(RF),SMA(IF)

    Reference Clock

    10MHz In; 10MHz Out; 100MHz Out

    Control Port

    RJ45(RS232), HDMI(DIFF SPI)

    Power Supply

    12 VDC,2A

    Dimension

    168mm x 145mm x 65mm

    Weigh

    1885g

Overview

UME-28TR64 is a 64-elements mmWave Active Phased Array Antenna, with PA, LNA and phase-shifter for each element. The antenna can be controlled by USB-RS232 port via C dll command or high-speed SPI to  perform high-speed 2D beam scanning. The input and output frequency range of UME-28TR64 is 27~29GHz which can be integrated with NI mmWave VST and USRP. It can also be integrated with any IF system with external LO and mixer.

Highlights

  • Ultra-compact handheld design, with integrated up/down converter.
  • High performance, EVM as low as 2%.
  • PA and LNA integrated,  EIRP 50dBm.
  • Low noise figure comparing to peer vendor.
  • Specification



    RF Frequency Range

    27.2 ~ 29 GHz

    IF Frequency Range

    2~3.8GHz

    Duplex Mode

    TDD

    Antenna Type

    8 x 8 Array, Vertical Polarization

    Sidelobe Suppression

    ≥  12.5 dB (normal direction)

    ≥  10 dB (other direction)

    Beam Scanning Range

    ± 60° (2D)

    Number of Beams

    61(H) x 61(V)

    Beam Scanning Rate

    ≤ 10 μs/beam

    Tx EIRP

    ≥ 50 dBm @ P1dB

    Tx Gain Range

    -2 ~ 29 dB

    Maximum IF input power in Tx Mode

    -5 dBm (Single Tone),  -15dBm (PAPR=10)

    Maximum IF output  power in Rx Mode

    -11 dBm (Single Tone)

    Maximum Input RF power in Tx Mode

    5 dBm (Single Tone), -5 dBm (PAPR=10)

    Maximum output RF power in Rx Mode

    0 dBm (Single Tone)

    Receiver G/T

    ≥ -8 dB/K

    Rx Noise Figure

    ≤ 7 dB

    Rx Gain Range

    -8~ 23 dB

    Saturation Rx power(OTA)

    -45 dBm

    Phase Noise

    -93dBc/Hz @ 28GHz, 100kHz Offset

    EVM

    2%, -33dB

    RF/IF Connector

    2.92mm – K(RF),SMA(IF)

    Reference Clock

    10MHz In; 10MHz Out; 100MHz Out

    Control Port

    RJ45(RS232), HDMI(DIFF SPI)

    Power Supply

    12 VDC,2A

    Dimension

    168mm x 145mm x 65mm

    Weigh

    1885g
