UME-28UDx4
UME-28UDx4 with USRP X410

UME-28UDx4

4 channels, 28GHz up and down converter, including array antenna - Gaustech

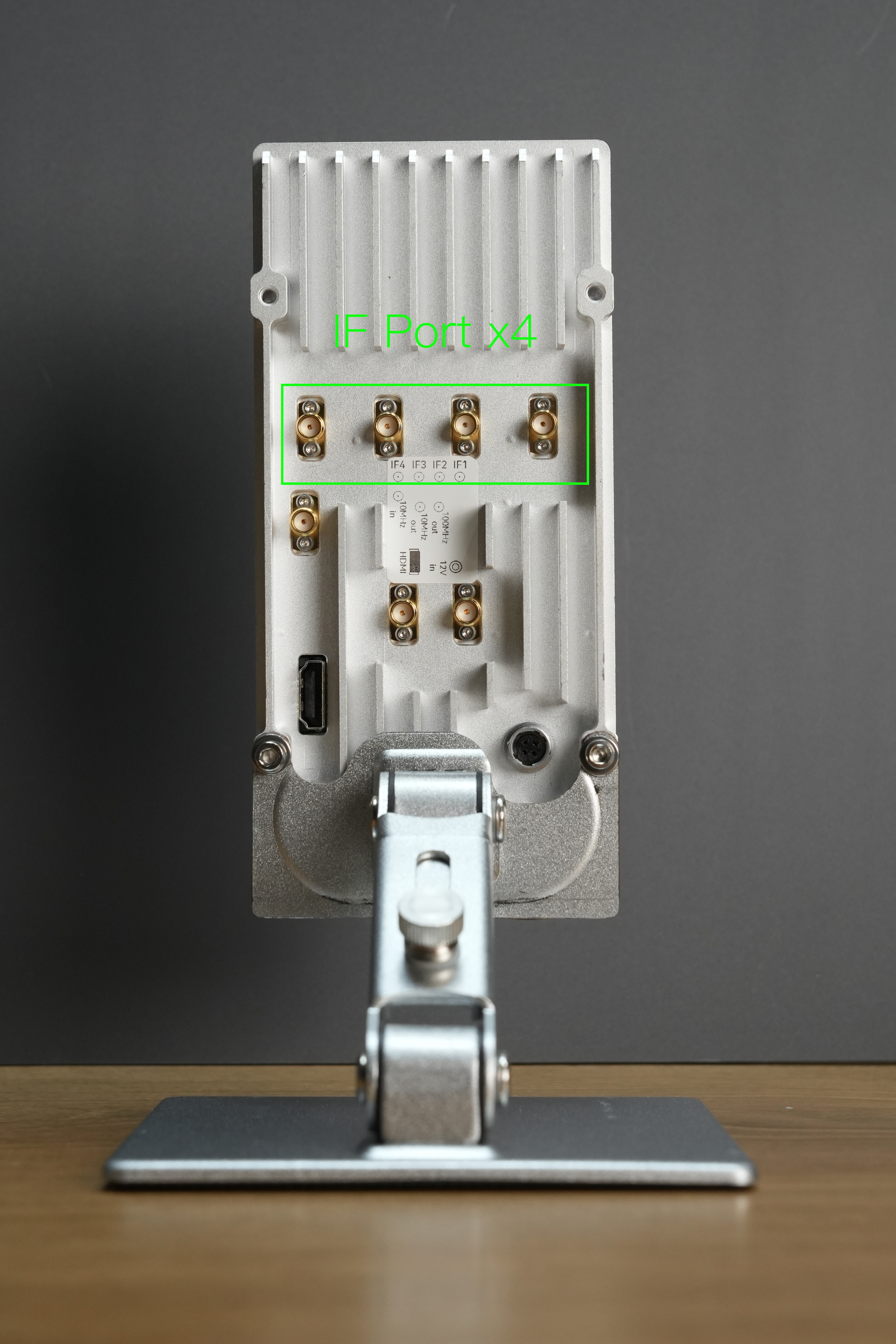

UME-28UDx4 is a 4-channel 28GHz mmWave up and down converter that integrates transmission and reception.

Overview

Overview

The UME-28UDx4 is a 4-channel FR2 n257 band up- and down-converter kit. The UME-28UDx4 has built-in up- and down-converter, filter, LNA, PA, LO which extend the frequency range of any IF (2~3.8 GHz) device, including the NI USRP, up to 28 GHz. The UME-28UDx4 integrates a half-wavelength antenna, which, in combination with 4 channels IF device (e.g. NI USRP-X410) can realize horizontal digital beam-forming.

As a 4-channel up and down converter, the UME-28UDx4 can work with most SDR platforms on the market to expand Sub6G SDR devices to the millimeter wave frequency band. For example, the USRP X410 with a bandwidth of 400MHz and frequency coverage of 1M~7.2GHz can achieve 4-channel millimeter wave frequency band reception/transmission through a single UME-28UDx4.

Overview

The UME-28UDx4 is a 4-channel FR2 n257 band up- and down-converter kit. The UME-28UDx4 has built-in up- and down-converter, filter, LNA, PA, LO which extend the frequency range of any IF (2~3.8 GHz) device, including the NI USRP, up to 28 GHz. The UME-28UDx4 integrates a half-wavelength antenna, which, in combination with 4 channels IF device (e.g. NI USRP-X410) can realize horizontal digital beam-forming.

As a 4-channel up and down converter, the UME-28UDx4 can work with most SDR platforms on the market to expand Sub6G SDR devices to the millimeter wave frequency band. For example, the USRP X410 with a bandwidth of 400MHz and frequency coverage of 1M~7.2GHz can achieve 4-channel millimeter wave frequency band reception/transmission through a single UME-28UDx4.
