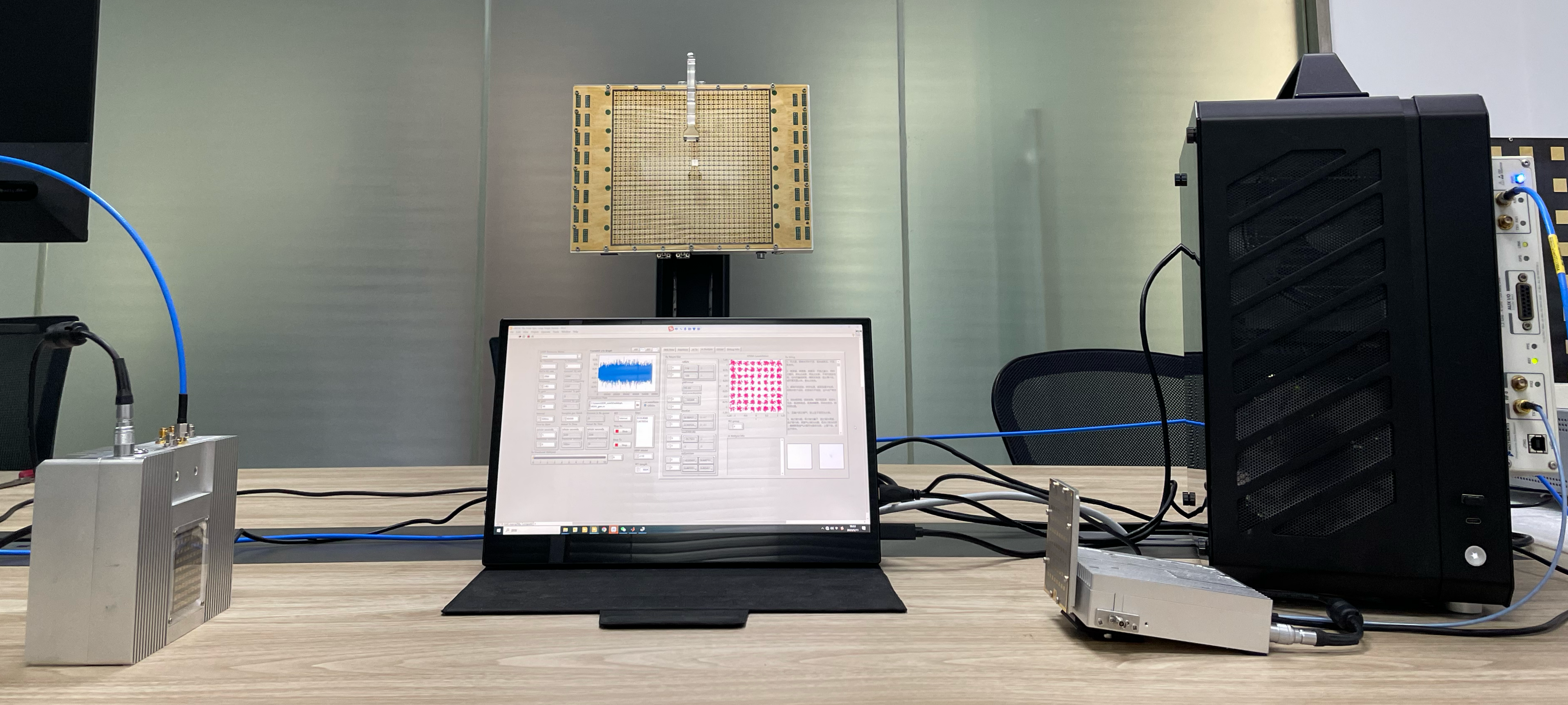

RIS265 working with USRP

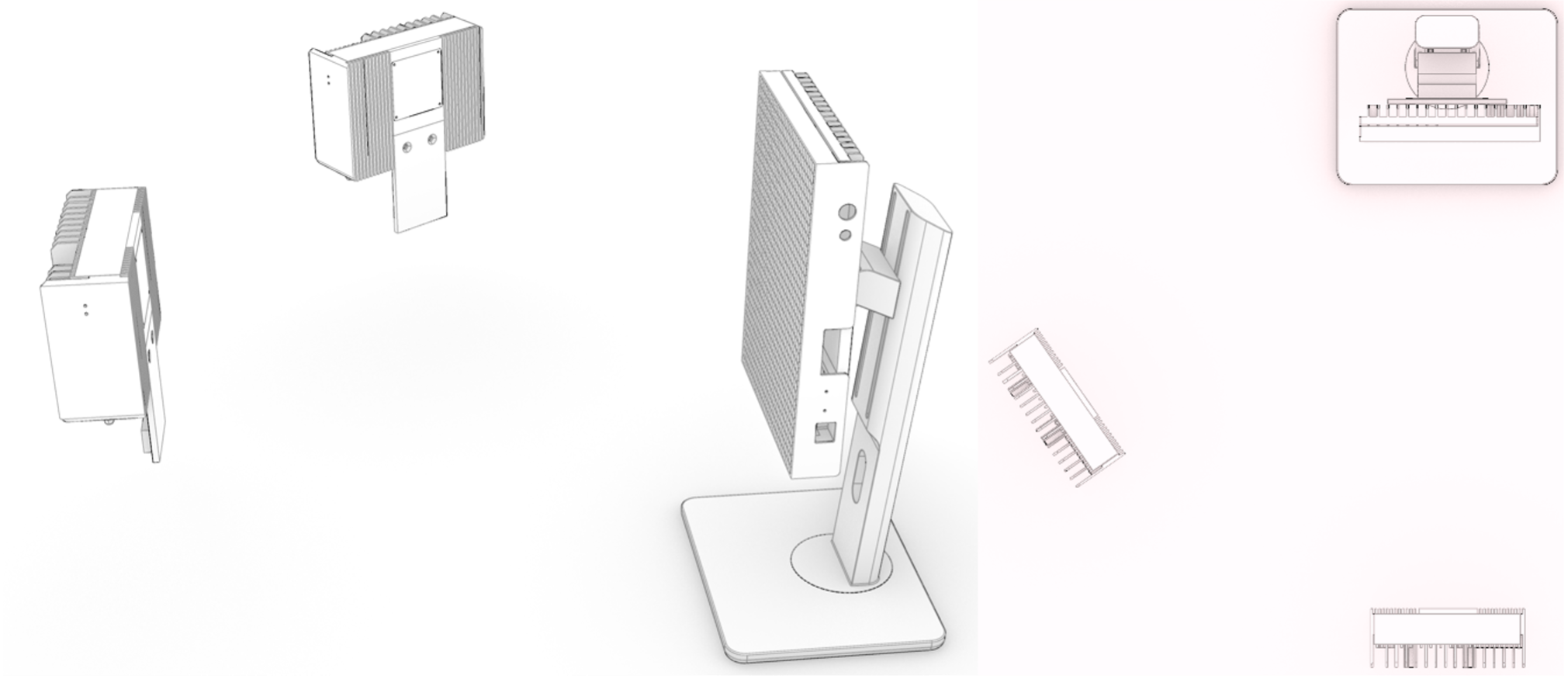

RIS265 working with UME-28TR64

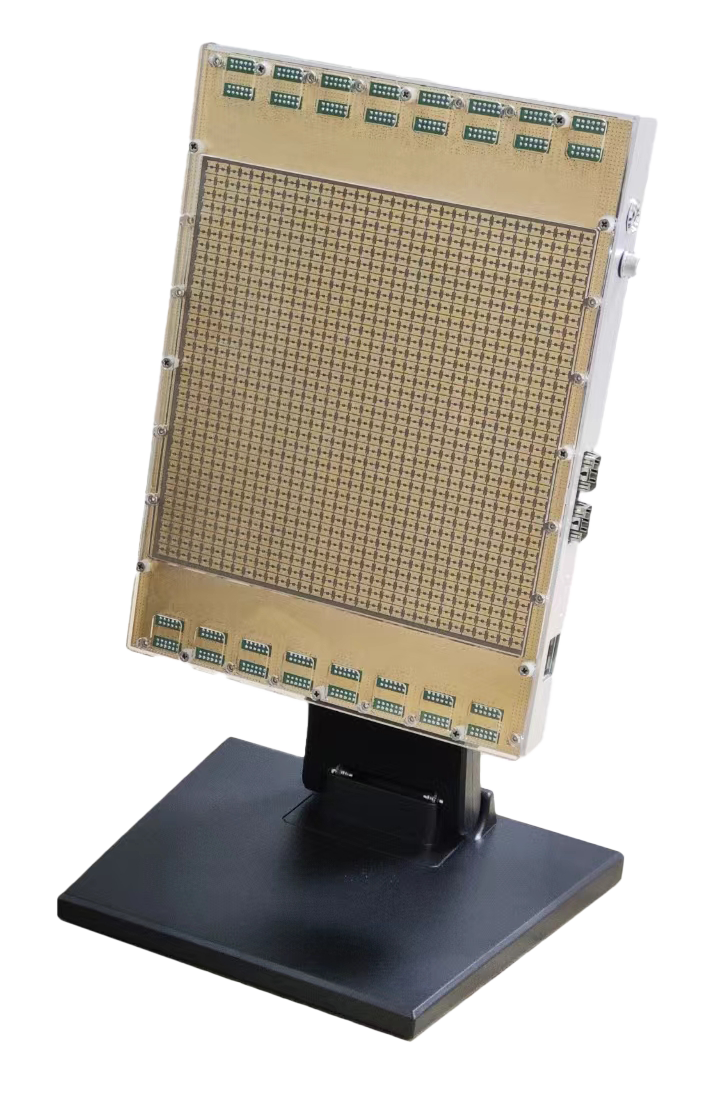

GS-RIS265-3232

25.5GHz to 27.5GHz, 32x32 elements, Line Polarized, 24dBi Normal Gain, SFP port - Gaustech

GS-RIS265-3232 is a reconfigurable intelligent surface (RIS) operates from 25.5GHz to 27.5GHz with 32×32 cells.

Overview

Overview

GS-RIS265-3232 is a reconfigurable intelligent surface (RIS) operates from 27GHz to 29GHz with 32x32cells. GS-RIS265-3232 can achieve 24dBi gain in the normal direction and 20dBi gain at 60° off boresight. GS-RIS265-3232 can  achieve a larger array by combing multiple modules. GS-RIS265-3232 also provides a very convenient control method. GS-RIS265-3232 contains a SFP optical fiber control interface, making it more suitable for the actual application scenarios of base stations working with RIS.

Specification
  • Specification

    GS-RIS265-3232

    Operating Band

    25.5-27.5GHz

    Polarization Mode

    Linear-Polarization

    Bandwidth

    ≥2GHz

    Array Scale

    32×32

    2-D Scanning Range

    ±60° Conical Area(axis in antenna normal direction)

    Beam Manipulation Ac­curacy

    ≤ 1°

    Gain

    ≥24dBi@ normal,≥20dBi@ 60° off boresight

    VSWR

    <1.5

    Controlling Interface

    SFP Interface

    Power-Supplying Interface

    Circular Connector

    Power Supply

    24VDC(DC Adaptor Provided)

    Power Dissipation

    <40W

    Size

    <260*190*40mm (Feeding Height: 100mm)

    Others

    1)     Support Fiber based Remote Multi-Antenna Arrays;

    2)     Provide MATLAB Matrix Configuration Script Code;

Overview

GS-RIS265-3232 is a reconfigurable intelligent surface (RIS) operates from 27GHz to 29GHz with 32x32cells. GS-RIS265-3232 can achieve 24dBi gain in the normal direction and 20dBi gain at 60° off boresight. GS-RIS265-3232 can  achieve a larger array by combing multiple modules. GS-RIS265-3232 also provides a very convenient control method. GS-RIS265-3232 contains a SFP optical fiber control interface, making it more suitable for the actual application scenarios of base stations working with RIS.

  • Specification

    GS-RIS265-3232

    Operating Band

    25.5-27.5GHz

    Polarization Mode

    Linear-Polarization

    Bandwidth

    ≥2GHz

    Array Scale

    32×32

    2-D Scanning Range

    ±60° Conical Area(axis in antenna normal direction)

    Beam Manipulation Ac­curacy

    ≤ 1°

    Gain

    ≥24dBi@ normal,≥20dBi@ 60° off boresight

    VSWR

    <1.5

    Controlling Interface

    SFP Interface

    Power-Supplying Interface

    Circular Connector

    Power Supply

    24VDC(DC Adaptor Provided)

    Power Dissipation

    <40W

    Size

    <260*190*40mm (Feeding Height: 100mm)

    Others

    1)     Support Fiber based Remote Multi-Antenna Arrays;

    2)     Provide MATLAB Matrix Configuration Script Code;
