GS-RIS35-1616

3.4~3.6GHz, 16x16 elements, Line Polarized, 18dBi Normal Gain, SFP port - Gaustech

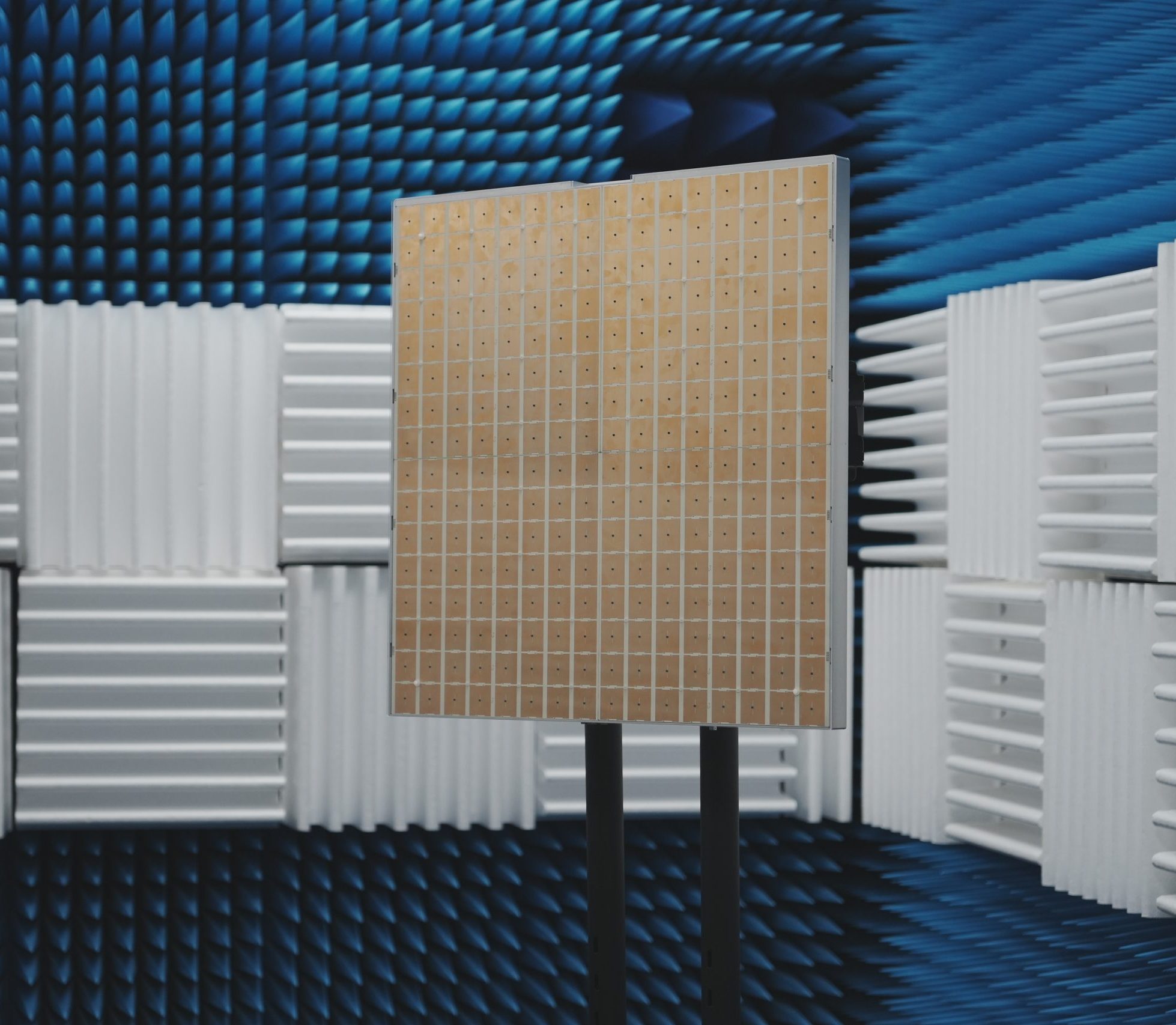

GS-RIS35-1616 is a reconfigurable intelligent surface(RIS) operates from 3.4GHz to 3.6GHz with 16×16 cells.

Overview

Overview

Overview

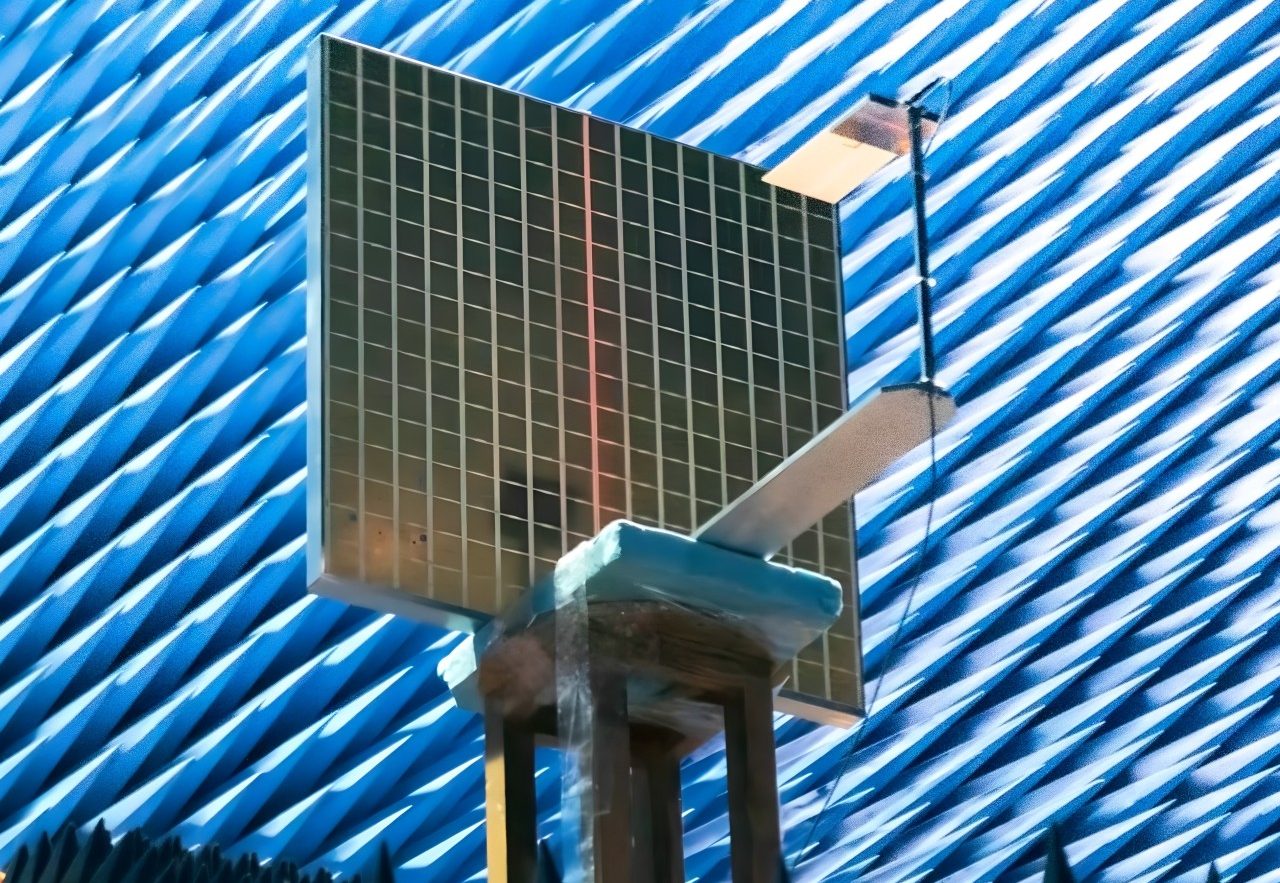

GS-RIS35-1616 is a reconfigurable intelligent surface(RIS) operates from 3.4GHz to 3.6GHz with 16×16 cells. GS-RIS35-1616 can achieve 17.5dBi gain in the normal direction and 14.5dBi gain with 60°offset of the normal direction. Multiple GS-RIS35-1616s can also be spliced together to compose a larger array. In addition to the excellent performance, GS-RIS35-1616 is also deployed with a convenient control method implemented by the SFP optical interface. With the optical fiber., a much further distance between GS-RIS35-1616 and control host could be achieved . This product feature makes GS-RIS35-1616 more suitable for the actual scenarios of the base station with RIS applications.

Specification
  • Specification

    •

      Operating Band

      3.4-3.6GHz

      Polarization Mode

      Vertical Linear-Polarization

      Operating Bandwidth

      ≥200MHz

      Array Scale

      16×16

      2-D Scanning Range

      ±60°conical area (axis in antenna normal direction)

      Gain

      ≥17.5dBi@normal, ≥14.5dBi@60° off the normal

      Sidelobe Rejection

      >15dB@normal, >10dB@other direction

      Angle Step

      1.8°

      Standing Wave

      <1.5@normal, <2@other directions

      Control Interface

      1G SFP interface

      Power Supply Connector

      YC-8 plug

      Power Supply

      24VDC (power adapter provided)

      Power Consumption

      <18W

      Size

      <705*705*18mm (feeding height 634mm)

      Other

      1.     Support optical fiber multi-antenna array;

      2.     provide MATLAB Data Code configuration script code

Overview

Overview

GS-RIS35-1616 is a reconfigurable intelligent surface(RIS) operates from 3.4GHz to 3.6GHz with 16×16 cells. GS-RIS35-1616 can achieve 17.5dBi gain in the normal direction and 14.5dBi gain with 60°offset of the normal direction. Multiple GS-RIS35-1616s can also be spliced together to compose a larger array. In addition to the excellent performance, GS-RIS35-1616 is also deployed with a convenient control method implemented by the SFP optical interface. With the optical fiber., a much further distance between GS-RIS35-1616 and control host could be achieved . This product feature makes GS-RIS35-1616 more suitable for the actual scenarios of the base station with RIS applications.

  • Specification

    •

      Operating Band

      3.4-3.6GHz

      Polarization Mode

      Vertical Linear-Polarization

      Operating Bandwidth

      ≥200MHz

      Array Scale

      16×16

      2-D Scanning Range

      ±60°conical area (axis in antenna normal direction)

      Gain

      ≥17.5dBi@normal, ≥14.5dBi@60° off the normal

      Sidelobe Rejection

      >15dB@normal, >10dB@other direction

      Angle Step

      1.8°

      Standing Wave

      <1.5@normal, <2@other directions

      Control Interface

      1G SFP interface

      Power Supply Connector

      YC-8 plug

      Power Supply

      24VDC (power adapter provided)

      Power Consumption

      <18W

      Size

      <705*705*18mm (feeding height 634mm)

      Other

      1.     Support optical fiber multi-antenna array;

      2.     provide MATLAB Data Code configuration script code
