Overview

GS-RIS35b2-1616 is an intelligent reflective surface operating between 3.4GHz and 3.6GHz, which can dynamically configure antenna units to achieve phase controllable reflection. When in a reflective state, electromagnetic waves can be controlled by encoding different phases, thereby achieving spatial beam direction control of the reflected electromagnetic waves and achieving a gain of over 20dBi in the normal direction. In addition to excellent performance indicators, GS-RIS35b2-1616 also provides a more convenient control mechanism for product functionality. The GS-RIS35b2-1616 external port is an SFP optical port, which can be controlled remotely through fiber optics, making it more suitable for practical application scenarios of base stations and RIS. Compared to the pure reflection mode in GS-RIS35b2-1616, GS-RIS35b2-1616 Flex can configure each unit to transmit and receive mode, providing a more flexible hybrid application mode through the coaxial interface output on the back.

• • Specification

    GS-RIS35b2-1616 Specification
    Operating Band	3.4-3.6GHz
    Polarization Mode	Vertical Linear-Polarization
    Operating Bandwidth	≥200MHz
    Array Scale	16×16
    Phase encoding	2 bits

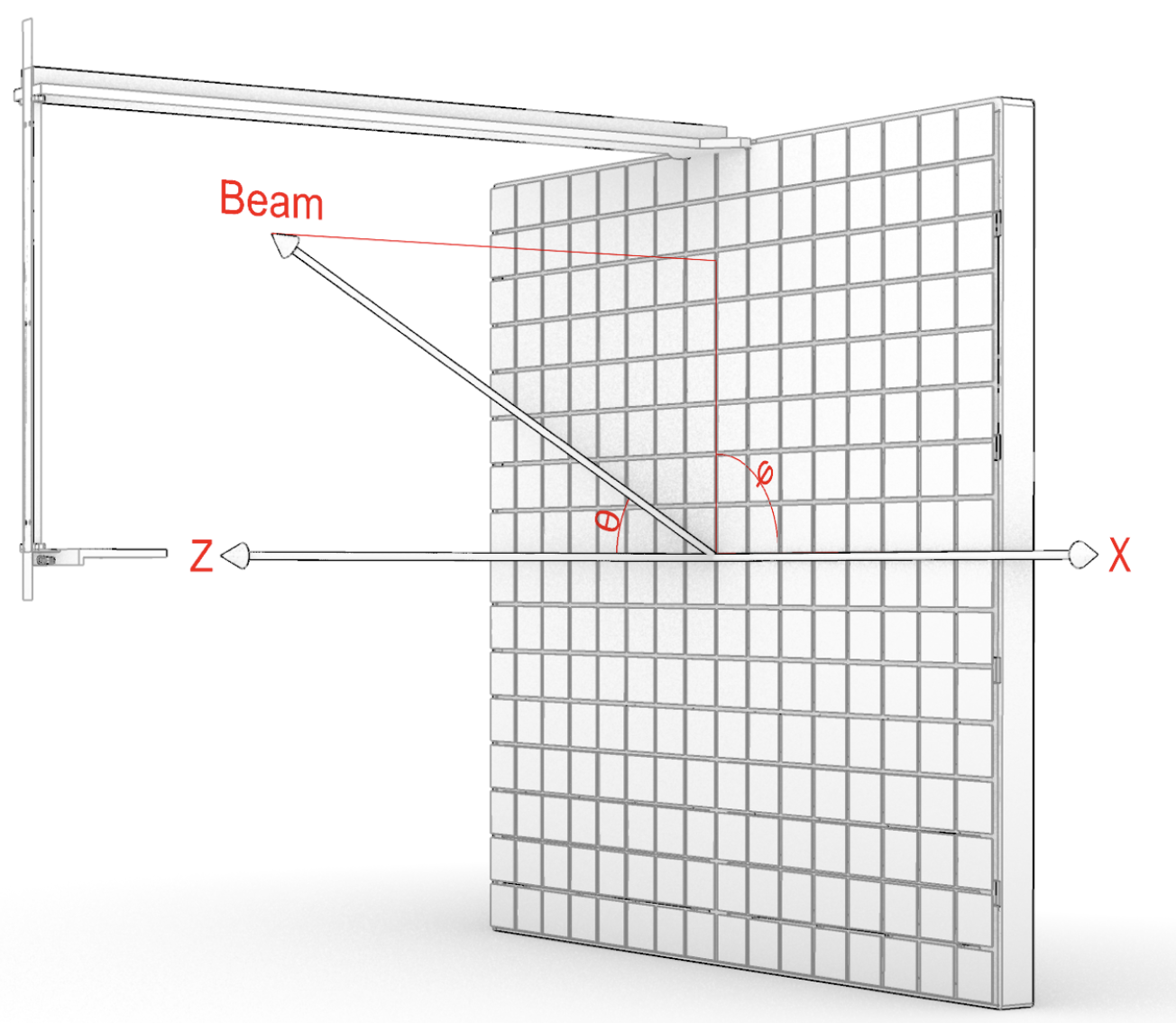

    2-D Scanning Range	±60°conical area (axis in antenna normal direction)
    Gain	≥20dBi@normal
    Control Interface	1G SFP interface
    Power Supply Connector	YC-8 plug
    Power Supply	24VDC (power adapter provided)
    Power Consumption	<12W
    Size	<710*710*40mm
    Other	1.     Support optical fiber multi-antenna array; 2.     provide MATLAB Data Code configuration script code
